Leucophane [ NaCaBe(Si2O6)F ]
Images of Leucophane
Material properties
| Formula | NaCaBe(Si2O6)F |
| Crystal symmetry | Orthorhombic, Point group 222, Space group P212121 (#19) |
| Variant | synthetic |
| Related materials | Leucophanite |
| Luminescence emitters | Ce, Dy, Eu, F, Mn, Nd, O, Sm, Tb, Tm |

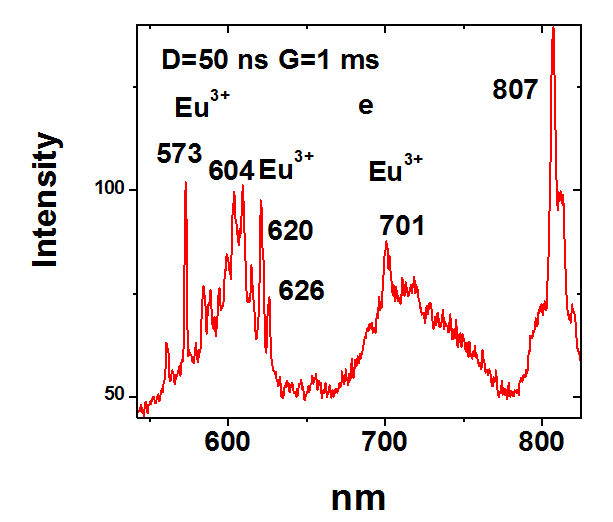

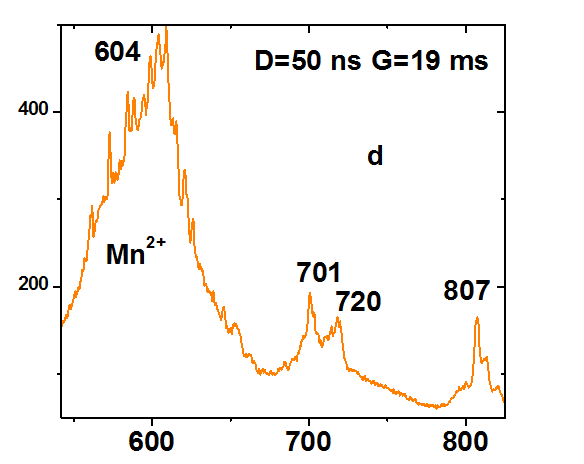

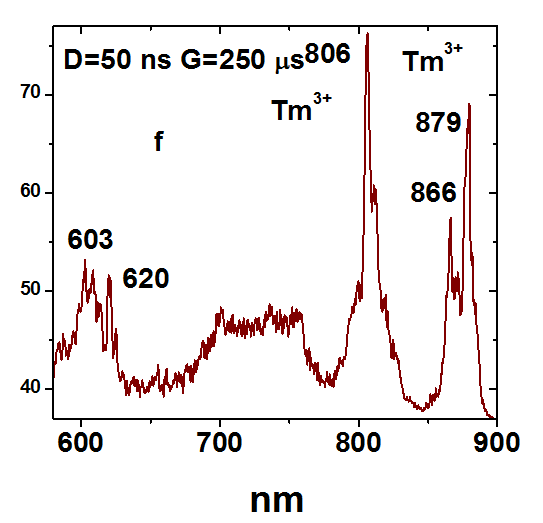

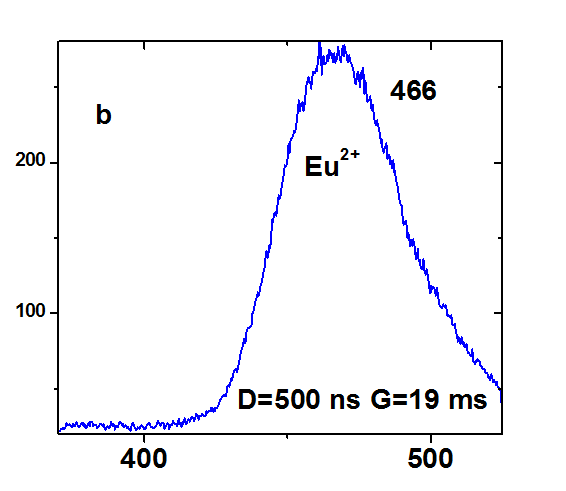

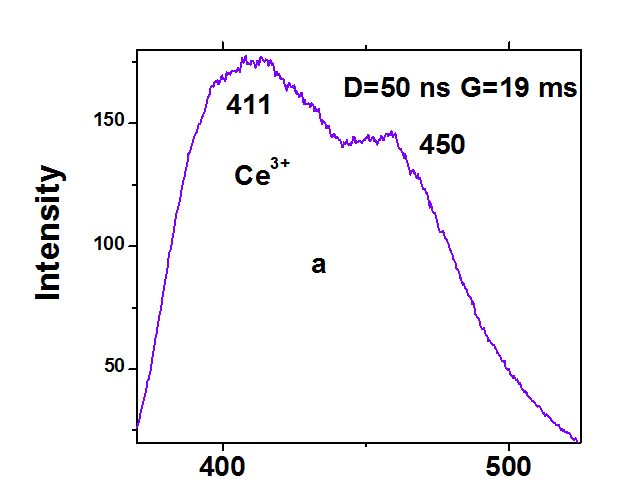

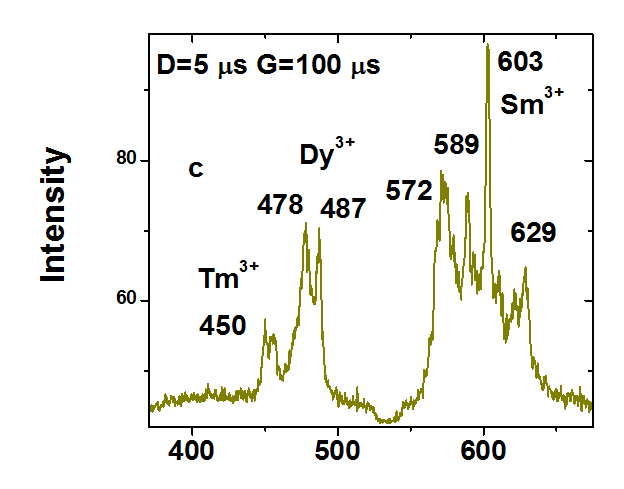

| Spectra | Luminescence (6) |
| Search other databases | webmineral.com, mindat.org, rruf.info, mineralienatlas.de, Handbook of Mineralogy, American Mineralogist Crystal Structure Database |
| Tags | Silicate, Synthetic |
Composition
| Element | Atoms |
|---|---|
| Na | 1 |
| Ca | 1 |
| Si | 2 |
| O | 6 |
| F | 1 |
| Be | 1 |
| Total: | 12 |
References for Leucophane
|
Lines | Spectra | Images | ||
|---|---|---|---|---|---|
| Gaft et al. 2005 | 11 | 6 | 6 | ||
| Gorobets and Rogojine 2002 | 6 | 0 | 0 | ||
| Tarashchan 1978 | 3 | 0 | 0 |
