Cerussite SXES spectrum, 5 keV e- beam, CSIRO 2016
Measurement spectrum
Loading...
Measurement details
| Description | SXES spectrum of Cerussite |
| Reference | CSIRO SXES database by C. M. MacRae, N. C. Wilson, and A. Torpy, CSIRO Mineral Resources https://spectroscopy.csiro.au/sxes |
| Date measured | 2016-09-27 |
| Material | Cerussite [ PbCO3 ] |
| Analysis technique | Soft x-ray emission spectroscopy (SXES) |
| Instrument | JEOL 8530F |
| Probe | 5 keV electron beam |
| Beam current | 60.1 nA |
| Grating | 50XL |
| Acquisition time | 720 s |
| Channel count | 2048 |
| Energy range | 46.8109 … 170.472 eV |
| Intensity range | 160 … 1200 counts |
| Integral | 718225 counts |
Specimen details
| Name | PbCO3 Hyper2-14 |
| Owner | CSIRO |
| Locality | Broken Hill, Far West Region, NSW, Australia |
| Related specimen | P-0173 Cerussite [CSIRO], Broken Hill, Far West Region, NSW, Australia |
Specimen image

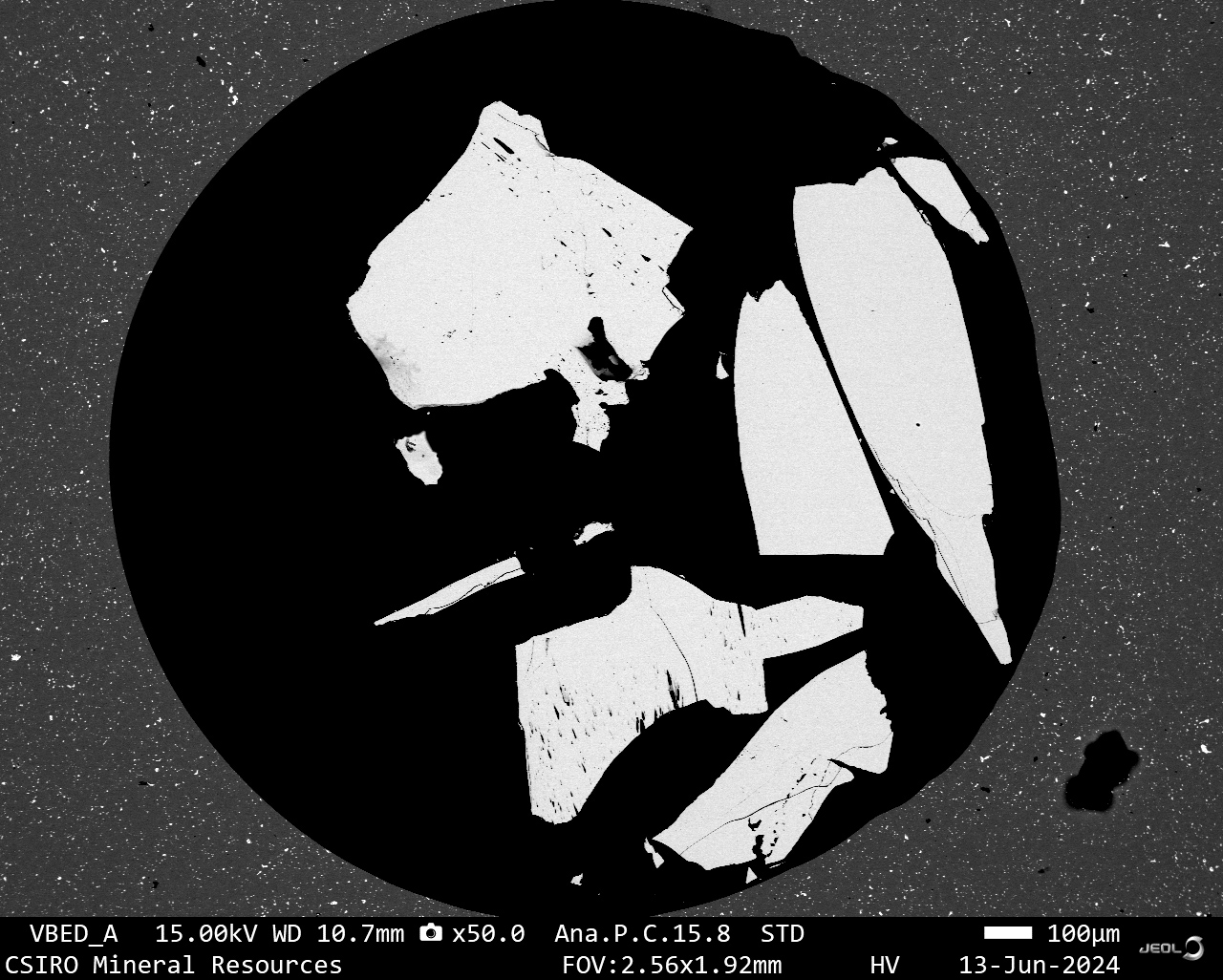

BSE image of Cerussite [PbCO3] in 'PbCO3 Hyper2-14' standard (CSIRO) from Broken Hill, NSW, Australia. Instrument: JEOL JSM-IT800.
© (C) 2024 CSIRO Mineral Resources. All Rights reserved.
Composition
| Element | Atoms | At% | Wt% |
|---|---|---|---|
| C | 1 | 20 | 4.49 |
| Pb | 1 | 20 | 77.5 |
| O | 3 | 60 | 18 |
Measurement image
SXES spectrum of Cerussite
