Zircon CL/SEM spectrum, 20 keV e- beam, CSIRO 2011
Measurement spectrum
Loading...
Measurement details
| Description | CL/SEM spectrum of Zircon |
| Reference | Otherwise unpublished luminescence spectra measured by the CSIRO Mineral Resources Microbeam Laboratory, Clayton https://research.csiro.au/microbeam-lab/ |
| Material | Zircon [ ZrSiO4 ] |
| Specimen temperature | Ambient |
| Analysis technique | Cathodoluminescence (CL), using an Electron Probe Micro-Analyser (EPMA) |
| Instrument | JEOL 8500F |
| Probe | 20 keV electron beam |
| Channel count | 1024 |
| Energy range | 1.24822 … 6.22331 eV |
| Intensity range | -2.71 … 100 (normalised intensity) |
| Line | Unspecified 2.468 eV (100%) |
Specimen details
| Name | ZrSiO4 Hyper2-31 |
| Owner | CSIRO |
| Related specimen | P-0319 Zircon [CSIRO] |
| Other measurements | Zircon SXES spectrum, 5 keV e- beam, CSIRO 2016 |
Specimen image

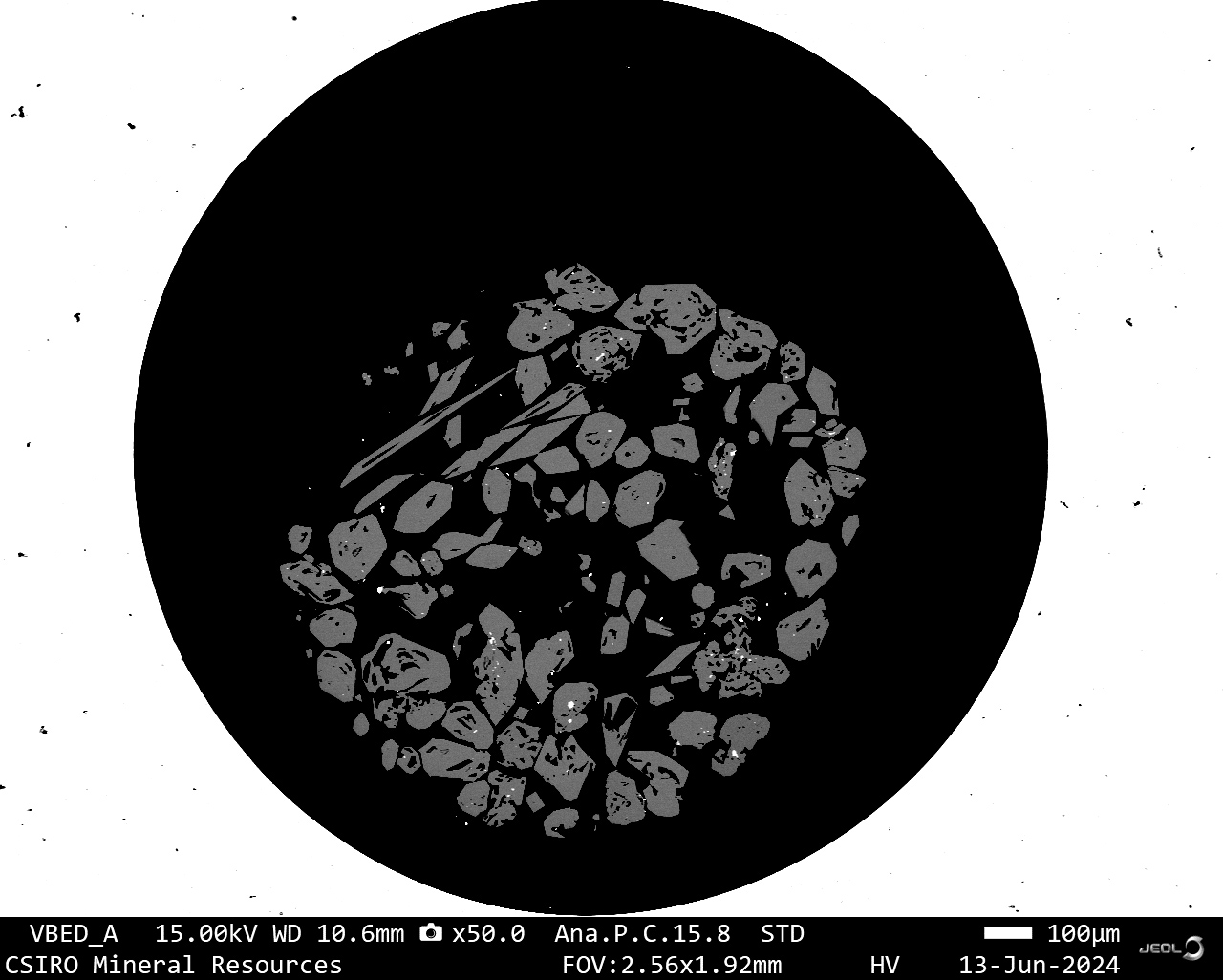

BSE image of Zircon [ZrSiO4] in 'ZrSiO4 Hyper2-31' standard (CSIRO). Instrument: JEOL JSM-IT800.
© (C) 2024 CSIRO Mineral Resources. All Rights reserved.
Composition
| Element | Atoms | At% | Wt% |
|---|---|---|---|
| Zr | 1 | 16.7 | 49.8 |
| Si | 1 | 16.7 | 15.3 |
| O | 4 | 66.7 | 34.9 |
