Germanium SXES spectrum, 5 keV e- beam, CSIRO 2016
Measurement spectrum
Loading...
Measurement details
| Description | SXES spectrum of Germanium |
| Reference | CSIRO SXES database by C. M. MacRae, N. C. Wilson, and A. Torpy, CSIRO Mineral Resources https://spectroscopy.csiro.au/sxes |
| Date measured | 2016-09-27 |
| Material | Germanium [ Ge ] |
| Analysis technique | Soft x-ray emission spectroscopy (SXES) |
| Instrument | JEOL 8530F |
| Probe | 5 keV electron beam |
| Beam current | 59.8 nA |
| Grating | 50XL |
| Acquisition time | 720 s |
| Channel count | 2048 |
| Energy range | 46.8109 … 170.472 eV |
| Intensity range | -5.62 … 343 counts |
| Integral | 151579 counts |
Specimen details
| Name | Ge METM-17 |
| Owner | CSIRO |
| Related specimen | METM25-44 block [CSIRO] |
| Other measurements | Germanium SXES spectrum, 5 keV e- beam, CSIRO 2016 |
Specimen image

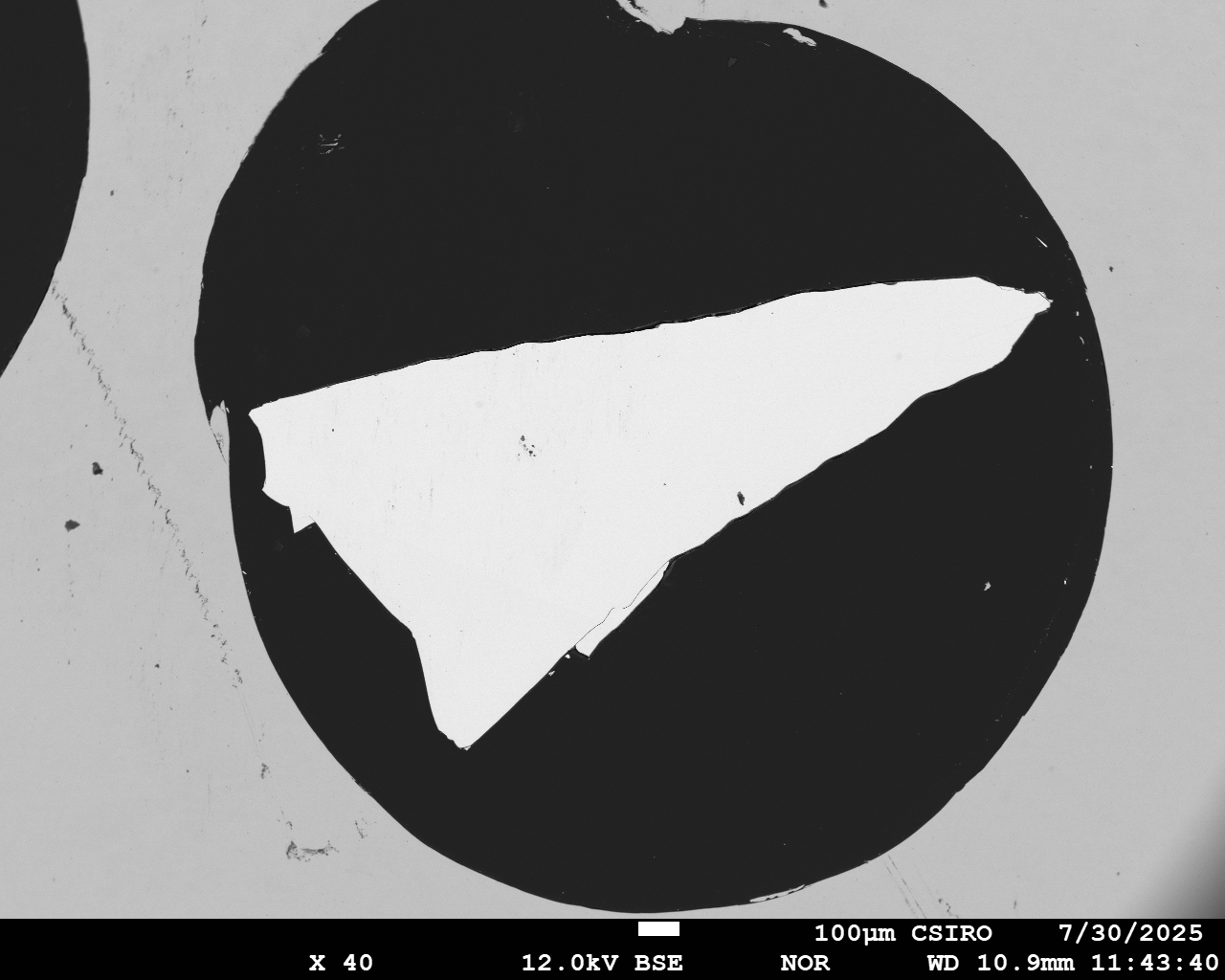

BSE image of Germanium [Ge] in 'Ge METM-17' standard (CSIRO). Instrument: JEOL JXA-8530F. Date: July 2025.
