Cerium(IV) oxide SXES spectrum, 5 keV e- beam, CSIRO 2016
Loading...
Measurement details
| Description | SXES spectrum of Cerium(IV) oxide |
| Reference | CSIRO SXES database by C. M. MacRae, N. C. Wilson, and A. Torpy, CSIRO Mineral Resources https://spectroscopy.csiro.au/sxes |
| Date measured | 2016-09-26 |
| Material | Cerium(IV) oxide [ CeO2 ] |
| Analysis technique | Soft x-ray emission spectroscopy (SXES) |
| Instrument | JEOL 8530F |
| Probe | 5 keV electron beam |
| Beam current | 99.9 nA |
| Grating | 50XL |
| Acquisition time | 640 s |
| Channel count | 2048 |
| Energy range | 46.8109 … 170.472 eV |
| Intensity range | 316 … 5403 counts |
| Integral | 2.3102×106 counts |
Specimen details
| Name | CeO2 Hyper2-28 |
| Owner | CSIRO |
| Related specimen | P-0114 CeO2 [CSIRO] |
| Other measurements | Cerium(IV) oxide CL/SEM spectrum, e- beam, CSIRO 2017 |
Specimen image

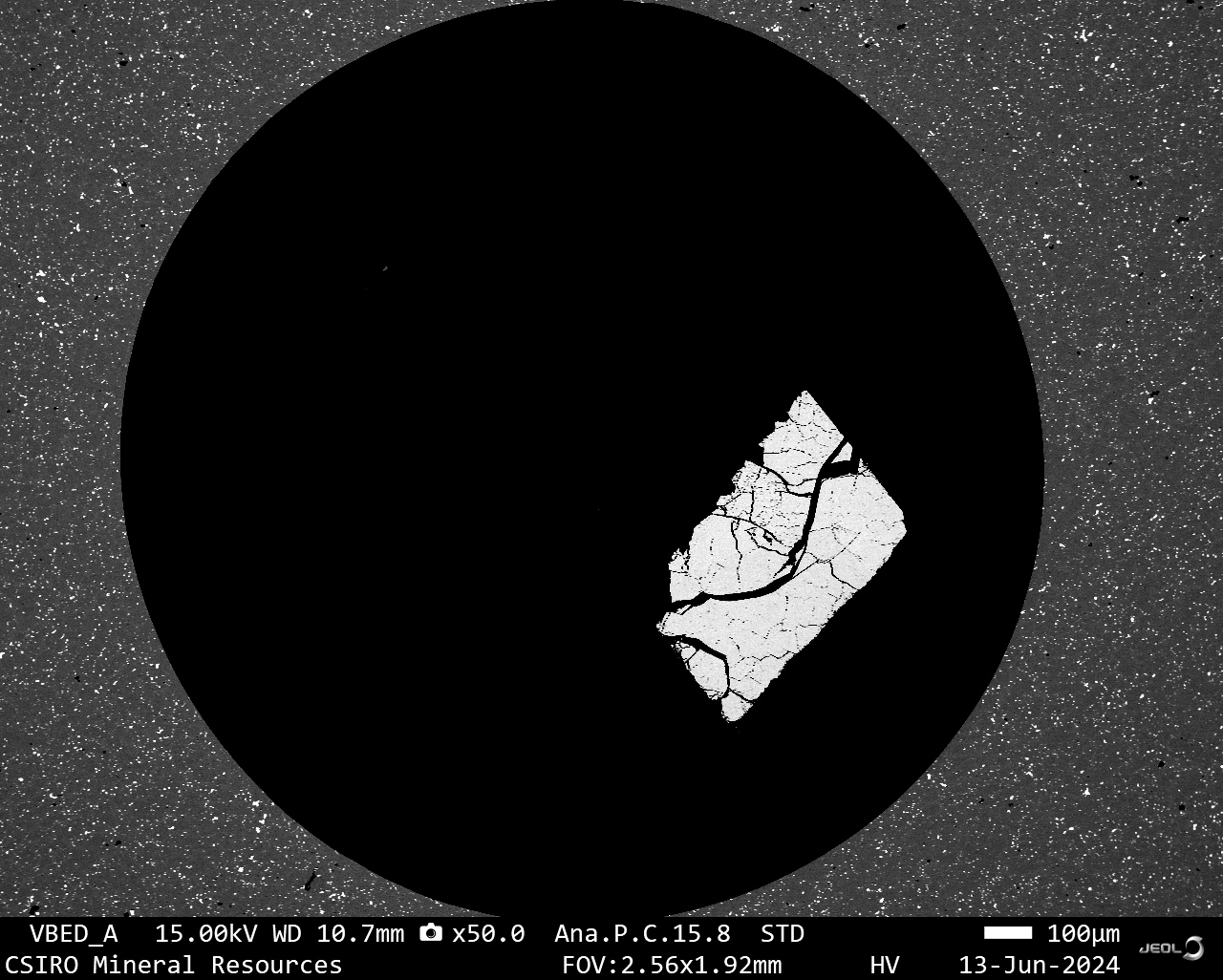

BSE image of Cerium(IV) oxide [CeO2] in 'CeO2 Hyper2-28' standard (CSIRO). Instrument: JEOL JSM-IT800.
(C) 2024 CSIRO Mineral Resources. All Rights reserved.
Composition
| Element | Atoms | At% | Wt% |
|---|---|---|---|
| Ce | 1 | 33.3 | 81.4 |
| O | 2 | 66.7 | 18.6 |
| Total | 3 | 100 | 100 |
Measurement image
SXES spectrum of Cerium(IV) oxide
