Zirconia (var. Y stabilised) CL/SEM spectrum, 20 keV e- beam, CSIRO 2016
Measurement spectrum
Loading...
Measurement details
| Description | CL/SEM spectrum of stabilised zirconia |
| Reference | Otherwise unpublished luminescence spectra measured by the CSIRO Mineral Resources Microbeam Laboratory, Clayton https://research.csiro.au/microbeam-lab/ |
| Material | Zirconia (var. Y stabilised) [ ZrO2:Y ] |
| Specimen temperature | Ambient |
| Analysis technique | Cathodoluminescence (CL), using an Electron Probe Micro-Analyser (EPMA) |
| Instrument | JEOL 8500F |
| Probe | 20 keV electron beam |
| Beam current | 10 nA |
| Probe diameter | 20 μm |
| Channel count | 1024 |
| Energy range | 1.276 … 6.21118 eV |
| Intensity range | -0.29 … 21.7 counts |
| Integral | 5697.84 counts |
| Lines | Intrinsic defect 2.4671 eV (100%), Nd3+ 1.3956 eV (11%) |
Specimen details
| Name | ZrO2(Y) Hyper1-41 |
| Owner | CSIRO |
| Related specimen | P-0293 Zirconia [CSIRO] |
| Other measurements | Zirconia (var. Y stabilised) SXES spectrum, 5 keV e- beam, CSIRO 2016 |
Specimen image

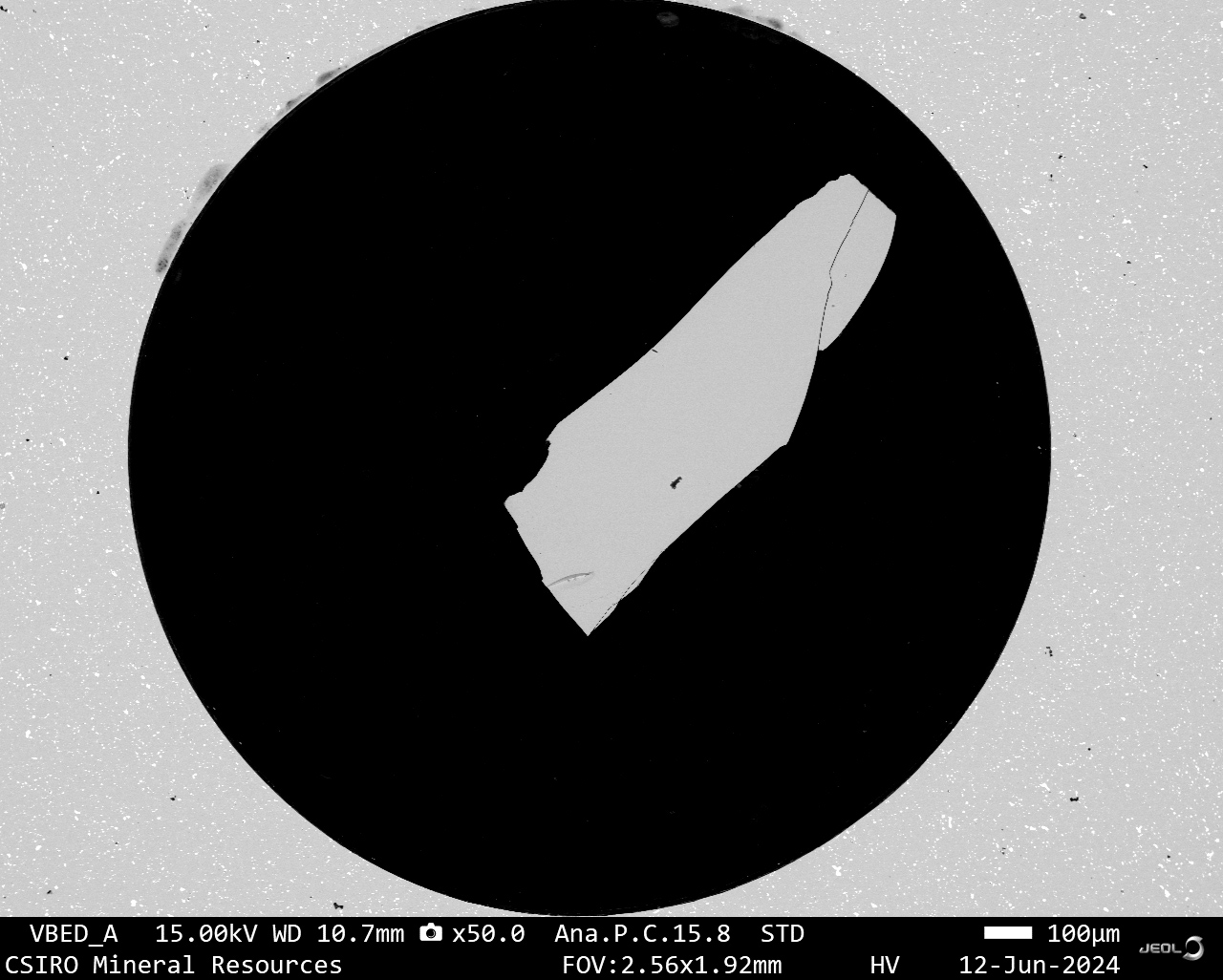

BSE image of Zirconia (var. Y stabilised) [ZrO2:Y] in 'ZrO2(Y) Hyper1-41' standard (CSIRO). Instrument: JEOL JSM-IT800.
© (C) 2024 CSIRO Mineral Resources. All Rights reserved.
Composition
| Element | Atoms | At% | Wt% |
|---|---|---|---|
| Y | 13.1 | 13.1 | 16.1 |
| Hf | 0.8 | 0.8 | 1.97 |
| Zr | 60.7 | 60.7 | 76.4 |
| O | 25.4 | 25.4 | 5.6 |
Measurement image
CL/SEM spectrum of stabilised zirconia
© (C) 2016 CSIRO Mineral Resources
