Acanthite SXES spectrum, 5 keV e- beam, CSIRO 2016
Measurement spectrum
Loading...
Measurement details
| Description | SXES spectrum of Argentite |
| Reference | CSIRO SXES database by C. M. MacRae, N. C. Wilson, and A. Torpy, CSIRO Mineral Resources https://spectroscopy.csiro.au/sxes |
| Date measured | 2016-09-26 |
| Material | Acanthite [ Ag2S ] |
| Analysis technique | Soft x-ray emission spectroscopy (SXES) |
| Instrument | JEOL 8530F |
| Probe | 5 keV electron beam |
| Beam current | 99.9 nA |
| Grating | 50XL |
| Acquisition time | 640 s |
| Channel count | 2048 |
| Energy range | 46.8109 … 170.472 eV |
| Intensity range | 232 … 1.168×104 counts |
| Integral | 2.1732×106 counts |
Specimen details
| Name | Ag2S Hyper1-2 |
| Owner | CSIRO |
| Related specimen | P-0033 Ag2S [CSIRO] |
Specimen image

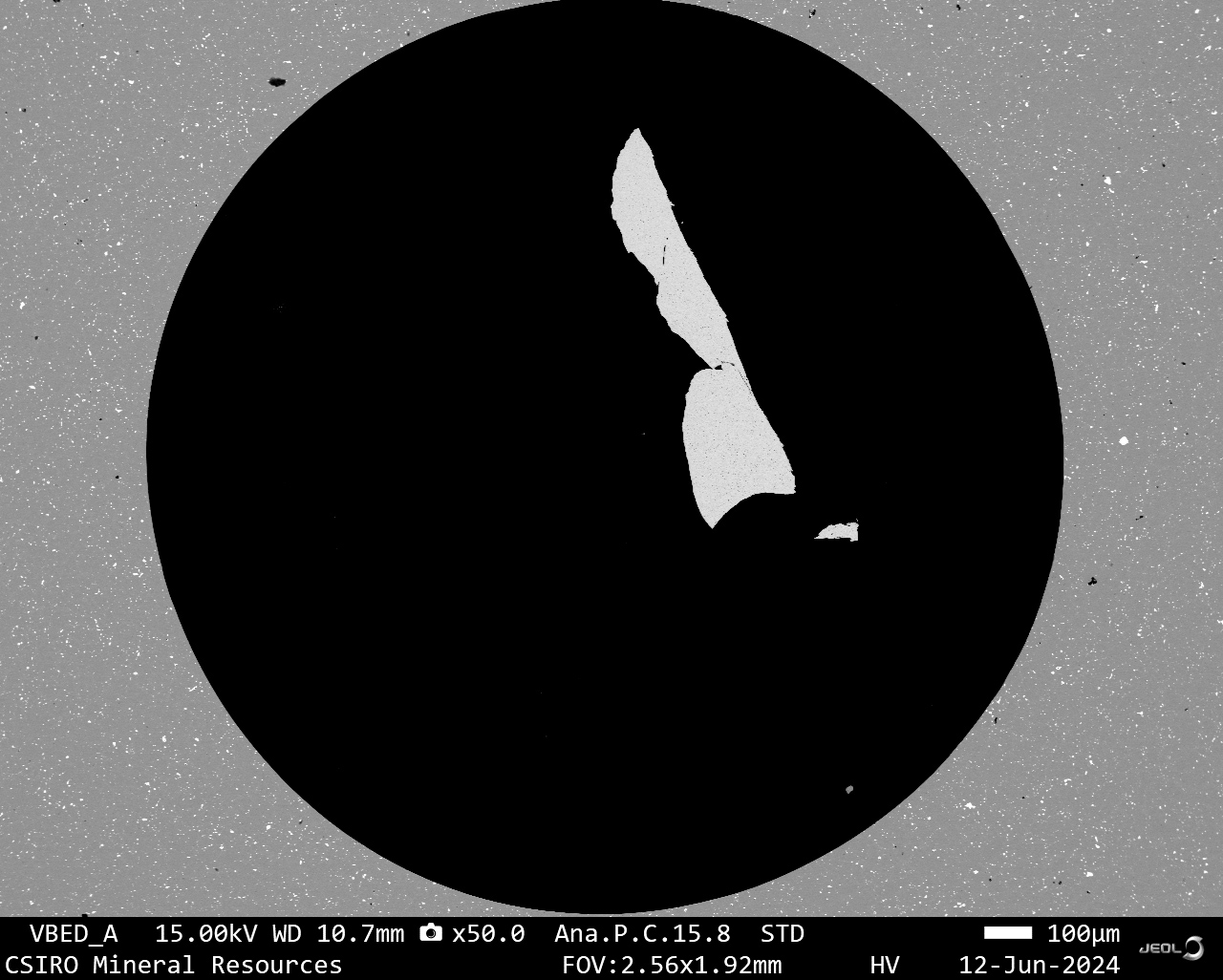

BSE image of Acanthite [Ag2S] in 'Ag2S Hyper1-2' standard (CSIRO). Instrument: JEOL JSM-IT800.
© (C) 2024 CSIRO Mineral Resources. All Rights reserved.
Composition
| Element | Atoms | At% | Wt% |
|---|---|---|---|
| Ag | 2 | 66.7 | 87.1 |
| S | 1 | 33.3 | 12.9 |
Measurement image
SXES spectrum of Argentite
