Bornite [ Cu₅FeS₄ ]

Image of Bornite

A specimen of Bornite, from the Lavender Open Pit Mine, Bisbee, Cochise Co., Arizona, USA. Size: 9.6 x 6.9 x 4.2 cm.

Photo by Rob Lavinsky, iRocks.com – CC-BY-SA-3.0

Material properties

Formula	Cu₅FeS₄
Abbreviation	Bn
IMA Status	Approved (IMA 1962 s.p.)
Search other databases	webmineral.com, mindat.org, rruf.info, mineralienatlas.de, Handbook of Mineralogy, American Mineralogist Crystal Structure Database
Crystal symmetry	Orthorhombic, Point group mmm, Space group Pbca (#61)
Tags	Mineral, Sulphide

Composition

Element	Atoms
Fe	1
S	4
Cu	5
Total:	10

Specimens of Bornite

Name	Owner	Materials	Phase purity	Image

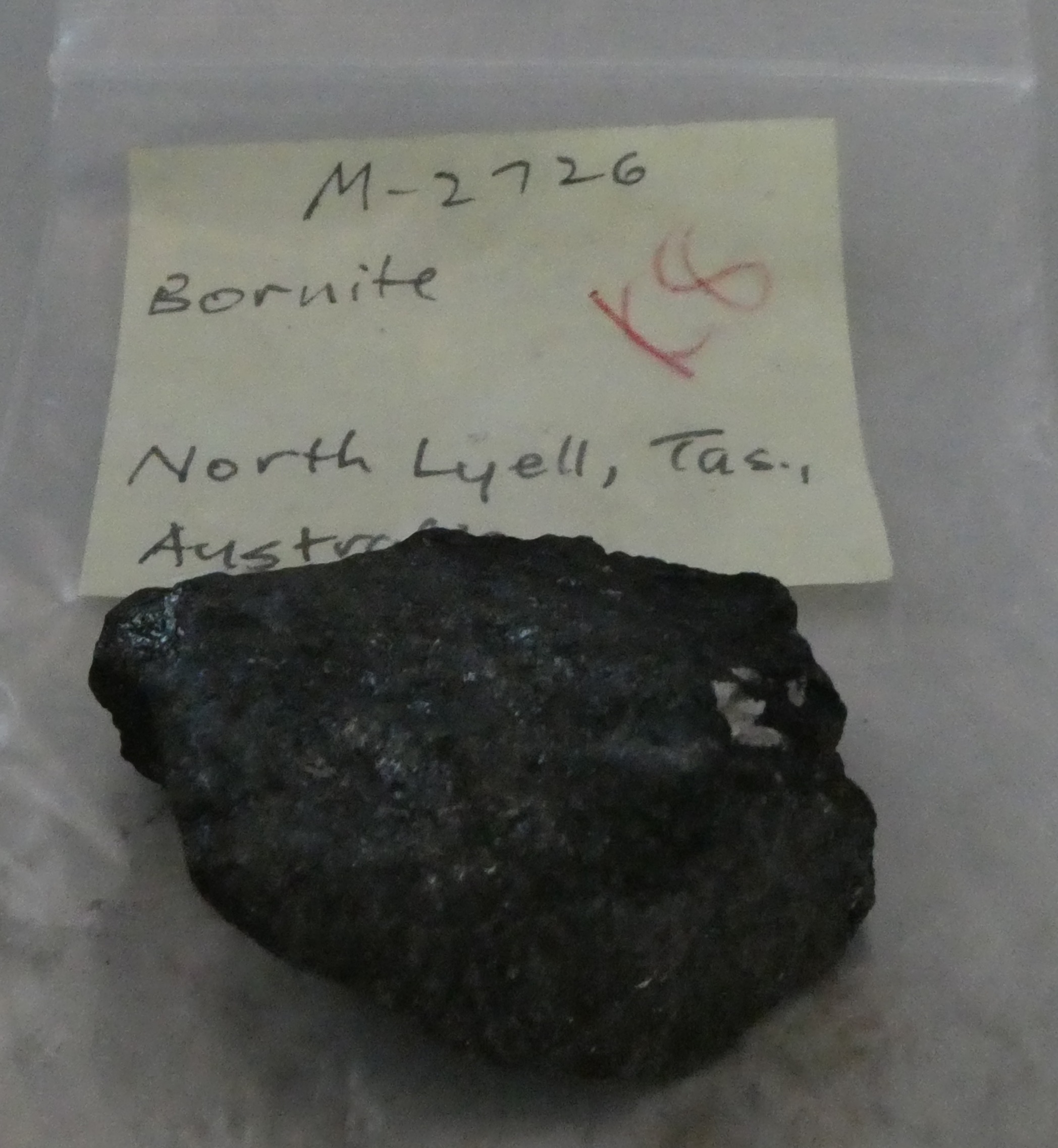

M2726 Bornite	CSIRO	Bornite (99.2%), Quartz	99.2	M2726 Bornite Image of Bornite and Quartz in specimen 'M2726 Bornite' [CSIRO]. (C) 2026 CSIRO Mineral Resources. All rights reserved.

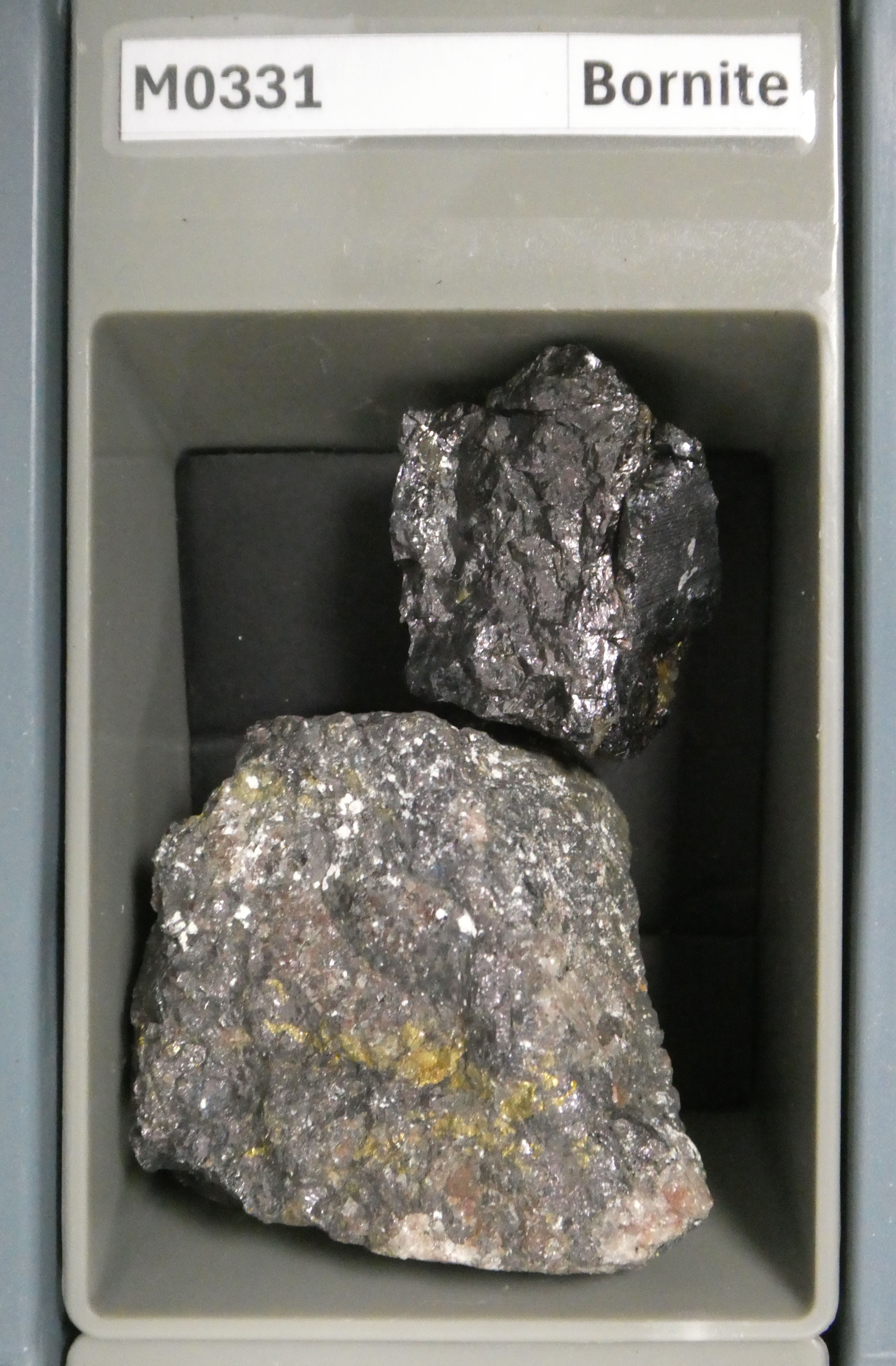

M0331 Bornite	CSIRO	Bornite (89.5%), Chalcopyrite, Quartz	89.5	M0331 Bornite Image of Bornite, Chalcopyrite and Quartz in specimen 'M0331 Bornite' [CSIRO], from Moonta, Copper Coast Council, Yorke Peninsula, SA, Australia. (C) 2025 CSIRO Mineral Resources. All rights reserved.

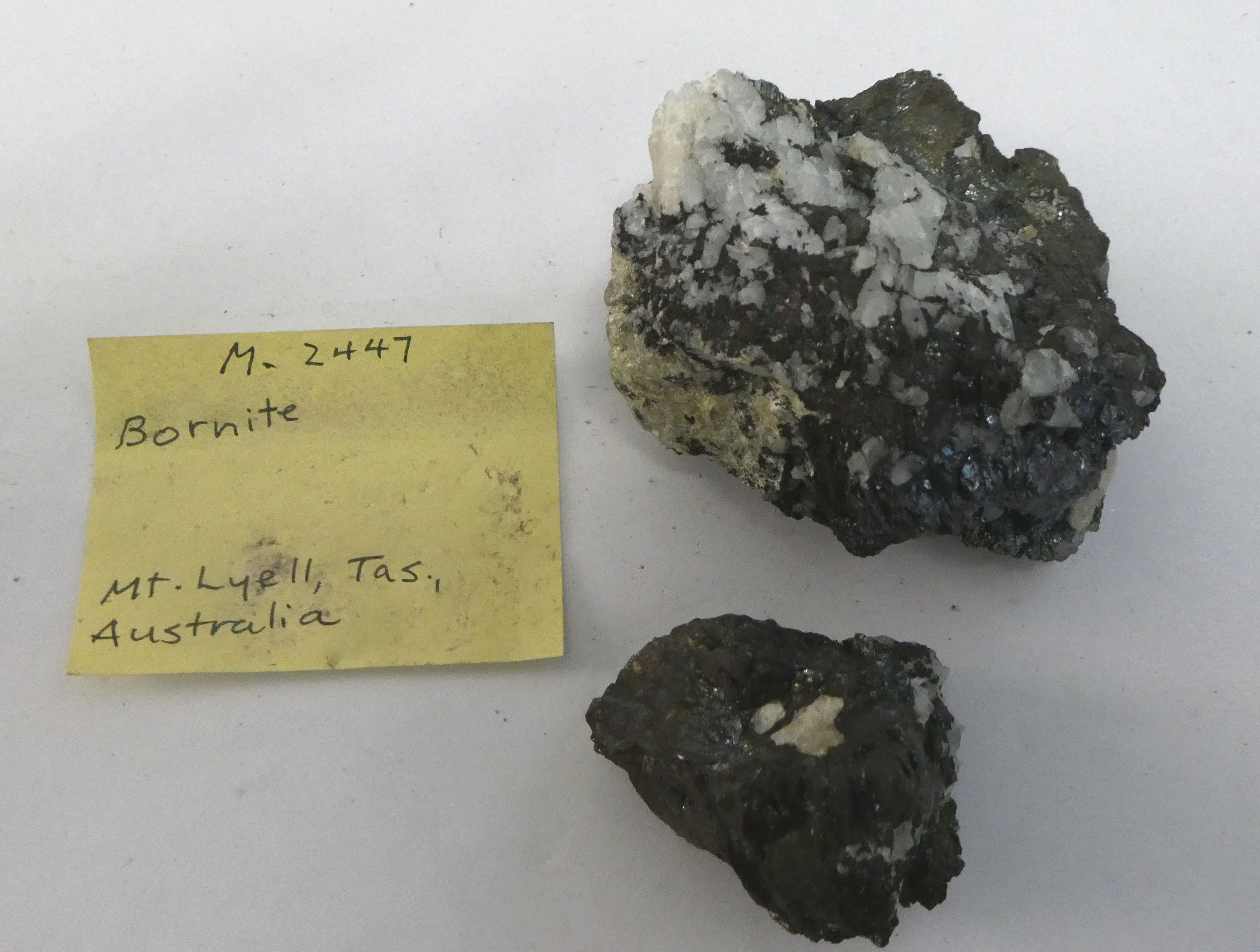

M2447 Bornite	CSIRO	Bornite (87.2%), Calcite, Hydroxylapatite, Quartz	87.2	M2447 Bornite Image of Bornite, Calcite, Hydroxylapatite and Quartz in specimen 'M2447 Bornite' [CSIRO], from Mount Lyell, West Coast Region, Tasmania, Australia. (C) 2025 CSIRO Mineral Resources. All rights reserved.

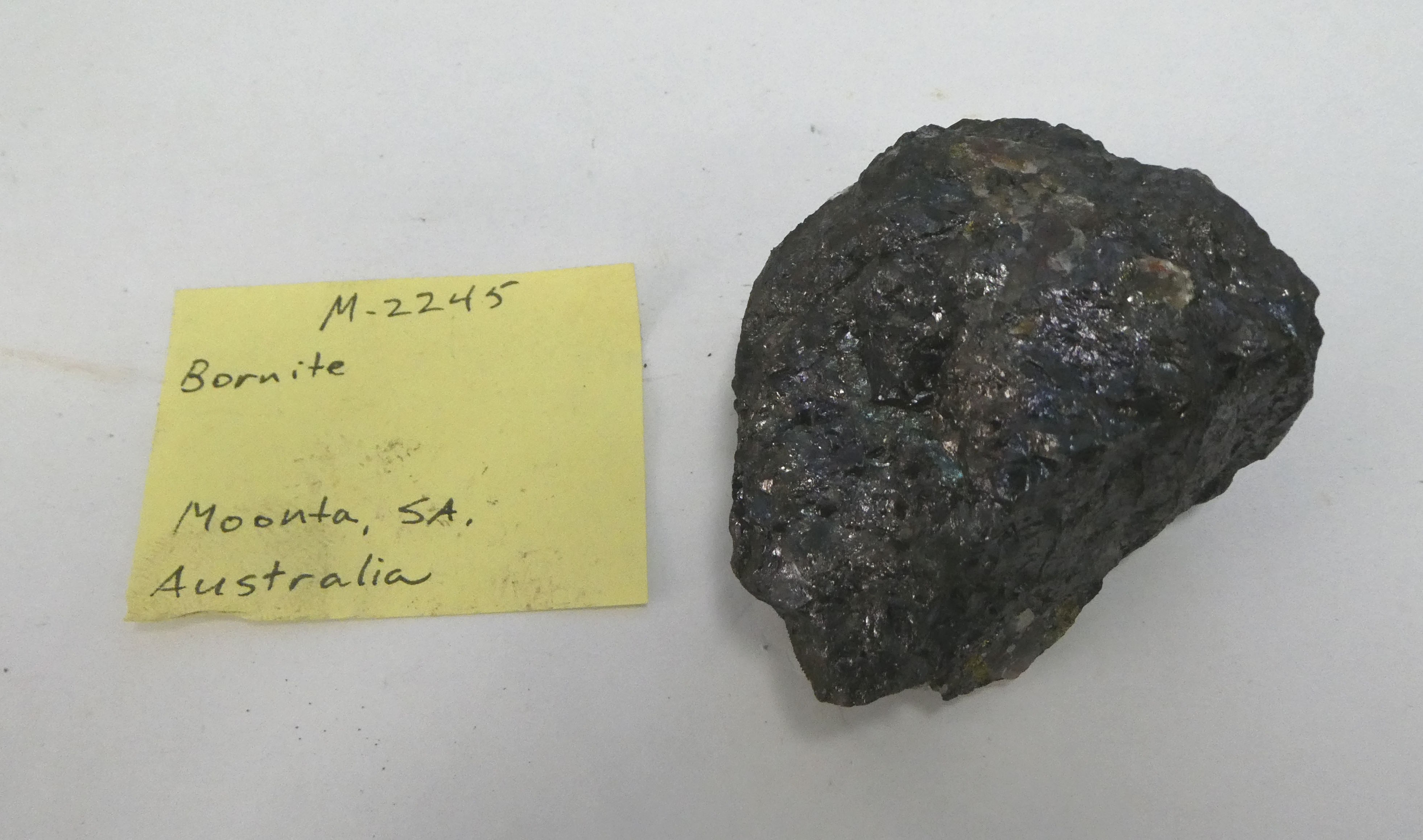

M2245 Bornite / Quartz	CSIRO	Bornite (80.5%), Chalcopyrite, Quartz	80.5	M2245 Bornite / Quartz Image of Bornite, Chalcopyrite and Quartz in specimen 'M2245 Bornite / Quartz' [CSIRO], from Moonta, Copper Coast Council, Yorke Peninsula, SA, Australia. (C) 2025 CSIRO Mineral Resources. All rights reserved.

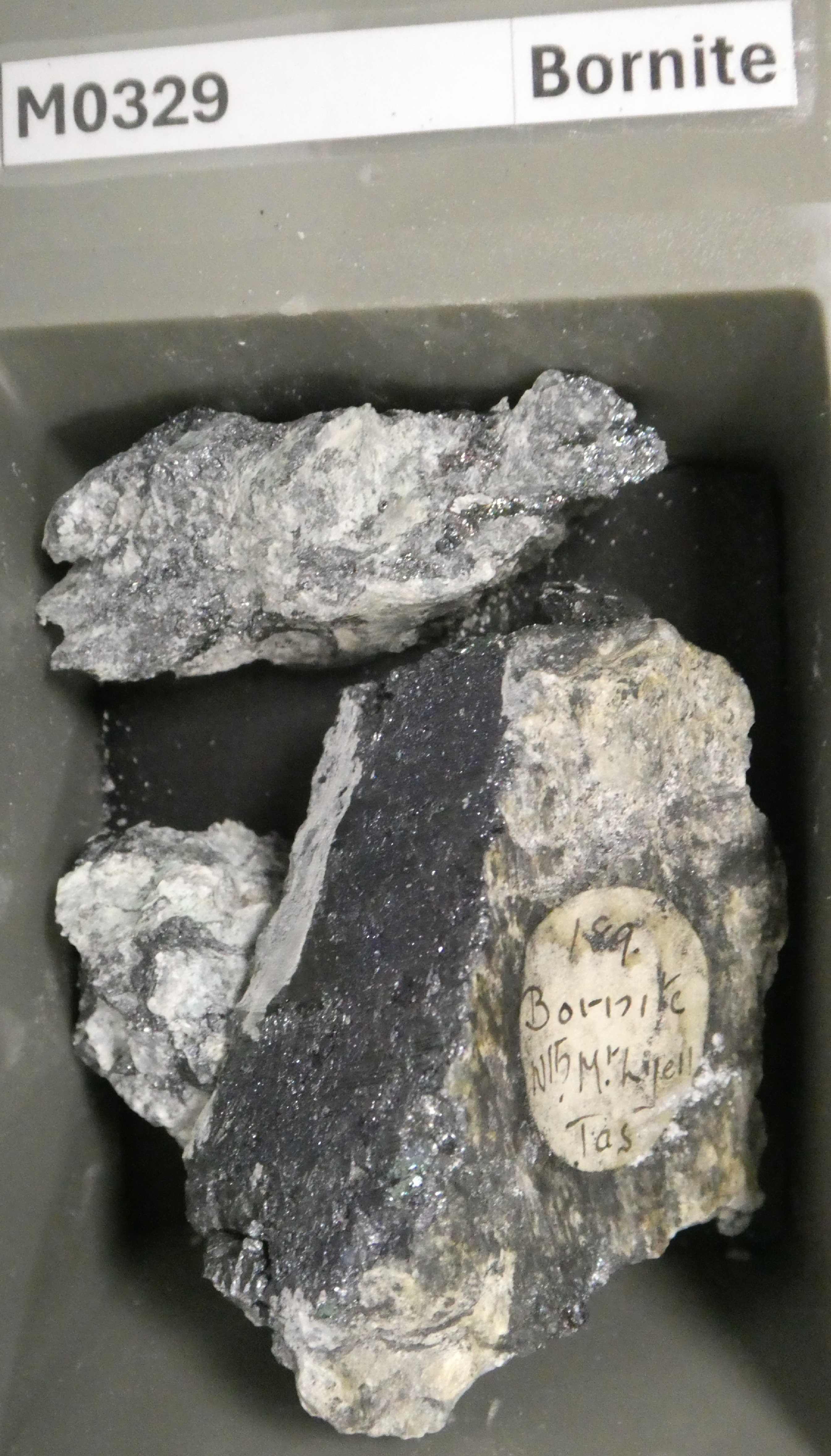

M0329 Bornite / Djurleite	CSIRO	Bornite (75.7%), Djurleite, Quartz	75.7	M0329 Bornite / Djurleite Image of Bornite, Djurleite and Quartz in specimen 'M0329 Bornite / Djurleite' [CSIRO]. (C) 2026 CSIRO Mineral Resources. All rights reserved.

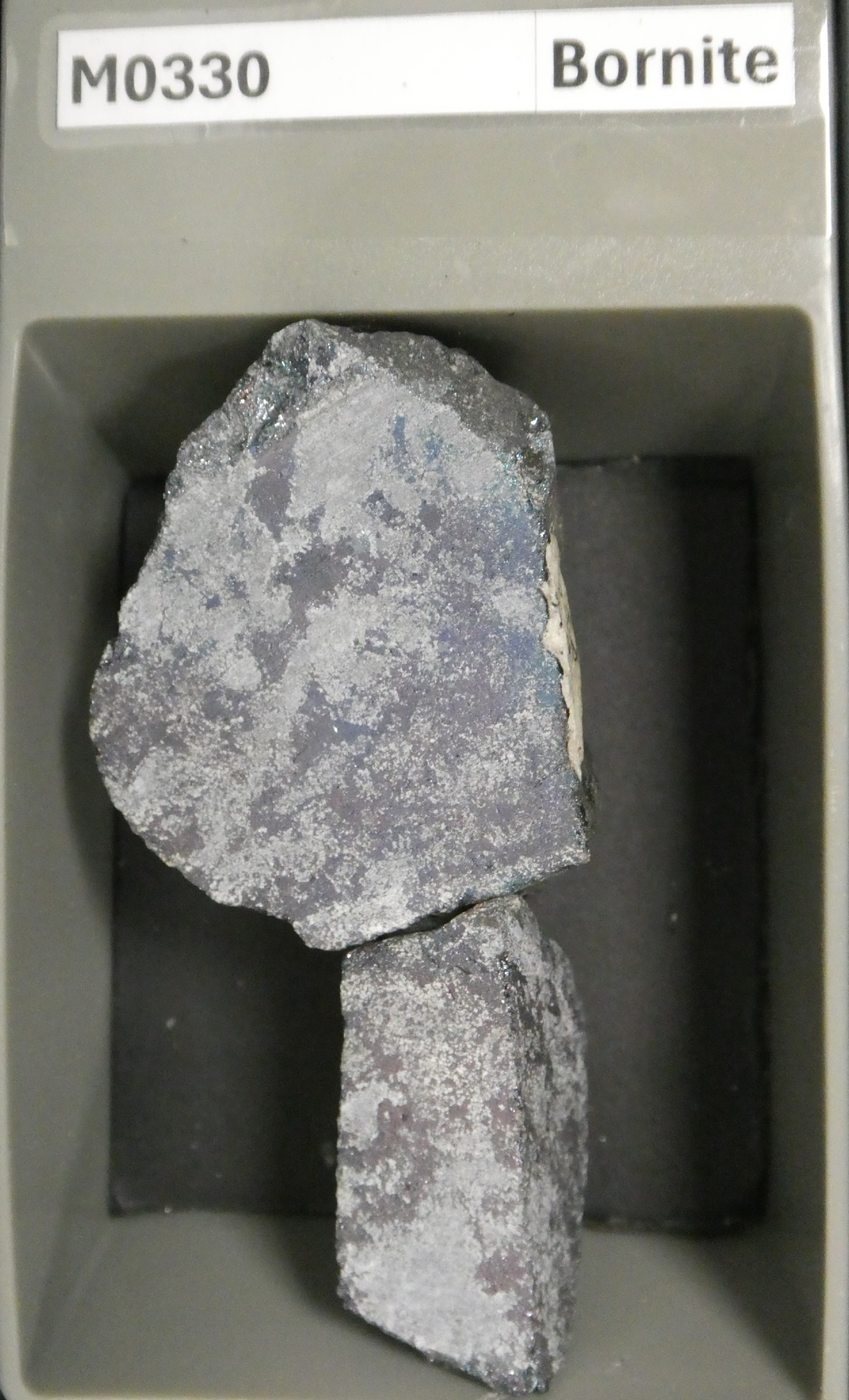

M0330 Bornite / Quartz	CSIRO	Bornite (63.2%), Quartz	63.2	M0330 Bornite / Quartz Image of Bornite and Quartz in specimen 'M0330 Bornite / Quartz' [CSIRO]. (C) 2026 CSIRO Mineral Resources. All rights reserved.
M2755 Bornite / Barite / Pyrite	CSIRO	Barite, Bornite (51.6%), Pyrite, Quartz, Stromeyerite, Tetrahedrite-(Cu)	51.6	M2755 Bornite / Barite / Pyrite Image of Bornite, Barite, Pyrite, Quartz, Stromeyerite and Tetrahedrite-(Cu) in specimen 'M2755 Bornite / Barite / Pyrite' [CSIRO]. (C) 2026 CSIRO Mineral Resources. All rights reserved.
M0293 Bornite / Chalcopyrite	CSIRO	Bornite (50.1%), Chalcopyrite	50.1	M0293 Bornite / Chalcopyrite Image of Bornite and Chalcopyrite in specimen 'M0293 Bornite / Chalcopyrite' [CSIRO]. (C) 2025 CSIRO Mineral Resources. All rights reserved.

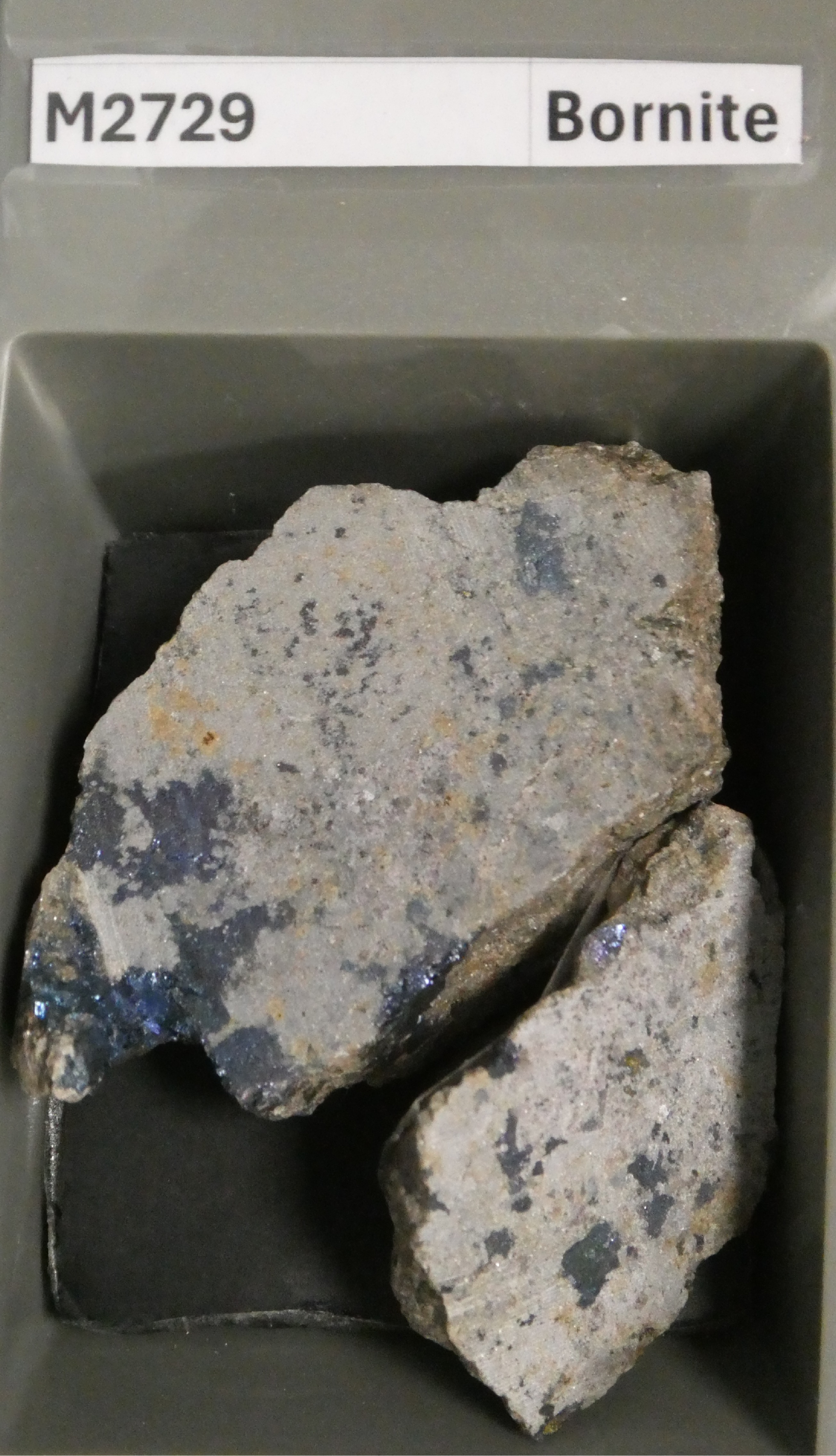

M2729 Bornite / Muscovite	CSIRO	Bornite (42.9%), Calcite, Cassiterite, Kaolinite, Muscovite-2M1, Quartz, Siderite	42.9	M2729 Bornite / Muscovite Image of Bornite, Calcite, Cassiterite, Kaolinite, Muscovite-2M1, Quartz and Siderite in specimen 'M2729 Bornite / Muscovite' [CSIRO]. (C) 2026 CSIRO Mineral Resources. All rights reserved.
M2597 Bornite / Quartz / Digenite	CSIRO	Ankerite, Bornite (39.7%), Calcite, Chalcocite, Digenite, Quartz	39.7	M2597 Bornite / Quartz / Digenite Image of Bornite, Ankerite, Calcite, Chalcocite, Digenite and Quartz in specimen 'M2597 Bornite / Quartz / Digenite' [CSIRO]. (C) 2026 CSIRO Mineral Resources. All rights reserved.

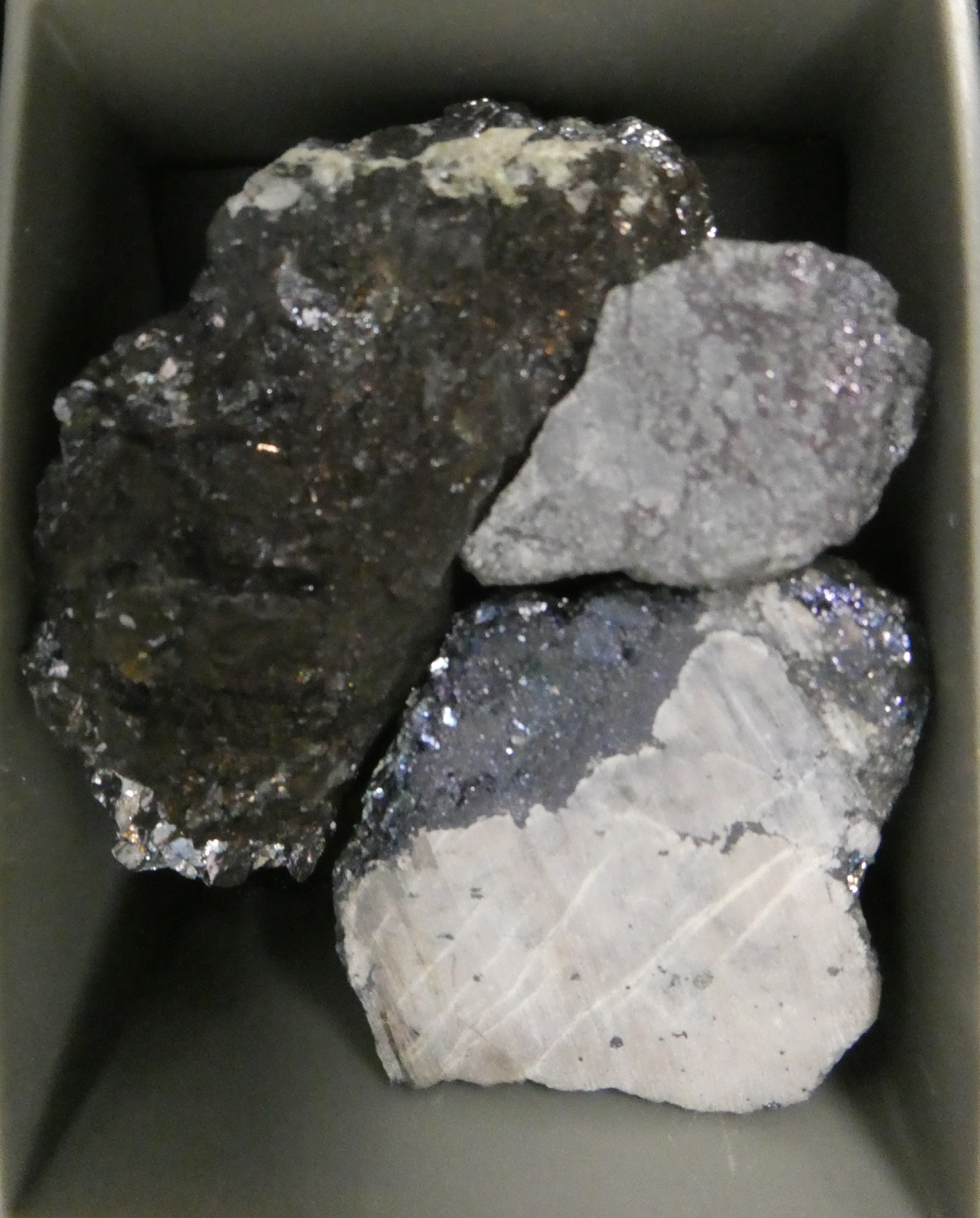

M2478 Bornite / Quartz / Digenite	CSIRO	Bornite (38.3%), Chalcocite, Digenite, Quartz	38.3	M2478 Bornite / Quartz / Digenite Image of Bornite, Chalcocite, Digenite and Quartz in specimen 'M2478 Bornite / Quartz / Digenite' [CSIRO]. (C) 2026 CSIRO Mineral Resources. All rights reserved.
M0298 Djurleite / Bornite	CSIRO	Bornite (33.3%), Chalcocite, low, Chalcopyrite, Clinochlore, Fe, Djurleite	33.3	M0298 Djurleite / Bornite Image of Djurleite, Bornite, Chalcocite (var. low), Chalcopyrite and Clinochlore (var. Fe) in specimen 'M0298 Djurleite / Bornite' [CSIRO]. (C) 2025 CSIRO Mineral Resources. All rights reserved.
M2467 Djurleite / Bornite	CSIRO	Bornite (17.1%), Djurleite	17.1	M2467 Djurleite / Bornite Image of Djurleite and Bornite in specimen 'M2467 Djurleite / Bornite' [CSIRO]. (C) 2026 CSIRO Mineral Resources. All rights reserved.
M0301 Djurleite / Pyrite / Malachite	CSIRO	Bornite (7.0%), Chalcocite, low, Chalcocite, high, Cuprite, Djurleite, Goethite, Malachite, Pyrite	7.0	M0301 Djurleite / Pyrite / Malachite Image of Djurleite, Bornite, Chalcocite (var. low), Chalcocite (var. high), Cuprite, Goethite, Malachite and Pyrite in specimen 'M0301 Djurleite / Pyrite / Malachite' [CSIRO]. (C) 2025 CSIRO Mineral Resources. All rights reserved.
M2742 Digenite / Djurleite	CSIRO	Bornite (6.4%), Chalcopyrite, Digenite, high, Djurleite, Hematite, Quartz	6.4	M2742 Digenite / Djurleite Image of Djurleite, Bornite, Chalcopyrite, Digenite (var. high), Hematite and Quartz in specimen 'M2742 Digenite / Djurleite' [CSIRO]. (C) 2026 CSIRO Mineral Resources. All rights reserved.

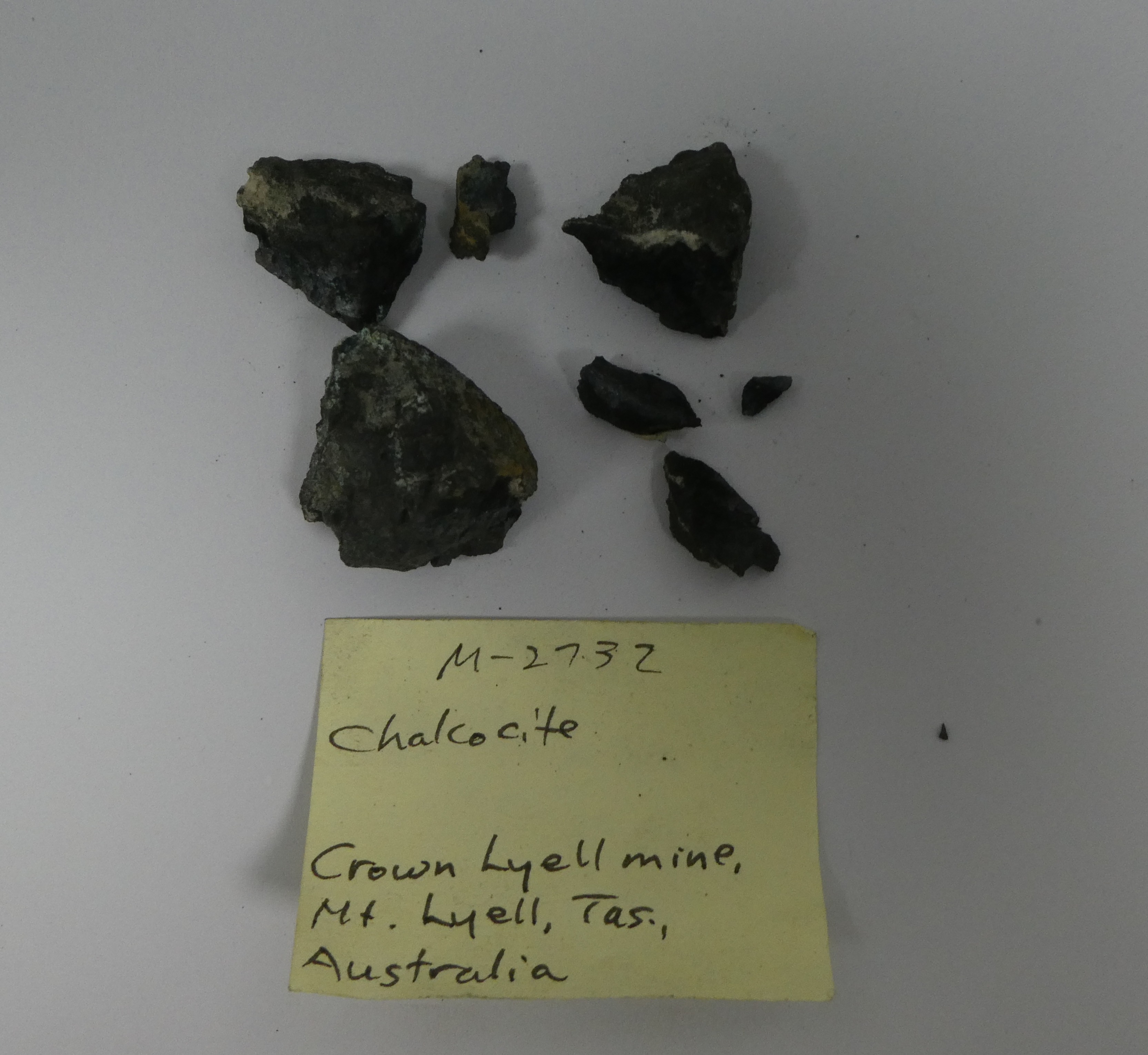

M2732 Digenite / Djurleite	CSIRO	Bornite (3.3%), Chalcopyrite, Digenite, high, Djurleite, Tenorite	3.3	M2732 Digenite / Djurleite Image of Djurleite, Bornite, Chalcopyrite, Digenite (var. high) and Tenorite in specimen 'M2732 Digenite / Djurleite' [CSIRO]. (C) 2026 CSIRO Mineral Resources. All rights reserved.
M0297 Phosgenite / Djurleite / Anglesite	CSIRO	Anglesite, Bornite (3.1%), Calcite, Chalcocite, low, Chalcocite, high, Djurleite, Phosgenite	3.1	M0297 Phosgenite / Djurleite / Anglesite Image of Phosgenite, Anglesite, Bornite, Calcite, Chalcocite (var. low), Chalcocite (var. high) and Djurleite in specimen 'M0297 Phosgenite / Djurleite / Anglesite' [CSIRO]. (C) 2025 CSIRO Mineral Resources. All rights reserved.
