Galena : CSIRO Spectroscopy Database

Galena [ PbS ]

Images of Galena

SXES spectrum of Galena

(C) 2016 CSIRO Mineral Resources

Galena on quartz, from Krushev dol deposit, Madan ore field, Rhodope Mts, Smolyan Oblast, Bulgaria. Size: 7.1 x 5.4 x 4.1 cm.

Rob Lavinsky, iRocks.com – CC-BY-SA-3.0

Material properties

Formula	PbS
Abbreviation	Gn
IMA Status	Grandfathered (pre-IMA), antiquity
Classifications	Lead sulphide, Galena (group)
Reflectance line	Unspecified
Spectra	SXES (1)
Search other databases	webmineral.com, mindat.org, rruf.info, mineralienatlas.de, Handbook of Mineralogy, American Mineralogist Crystal Structure Database
Tags	Mineral, Sulphide

Composition

Element	Atoms
S	1
Pb	1
Total:	2

References for Galena

CSIRO SXES database

0

1

0

0

Specimens of Galena

Name	Owner	Materials	Phase purity	Image	Spectra	Techniques
M1836 Galena	CSIRO	Galena (97.1%), Sphalerite (var. Fe2+)	97.1	M1836 Galena Image of Galena and Sphalerite (var. Fe2+) in specimen 'M1836 Galena' [CSIRO]. (C) 2026 CSIRO Mineral Resources. All rights reserved.	0	—

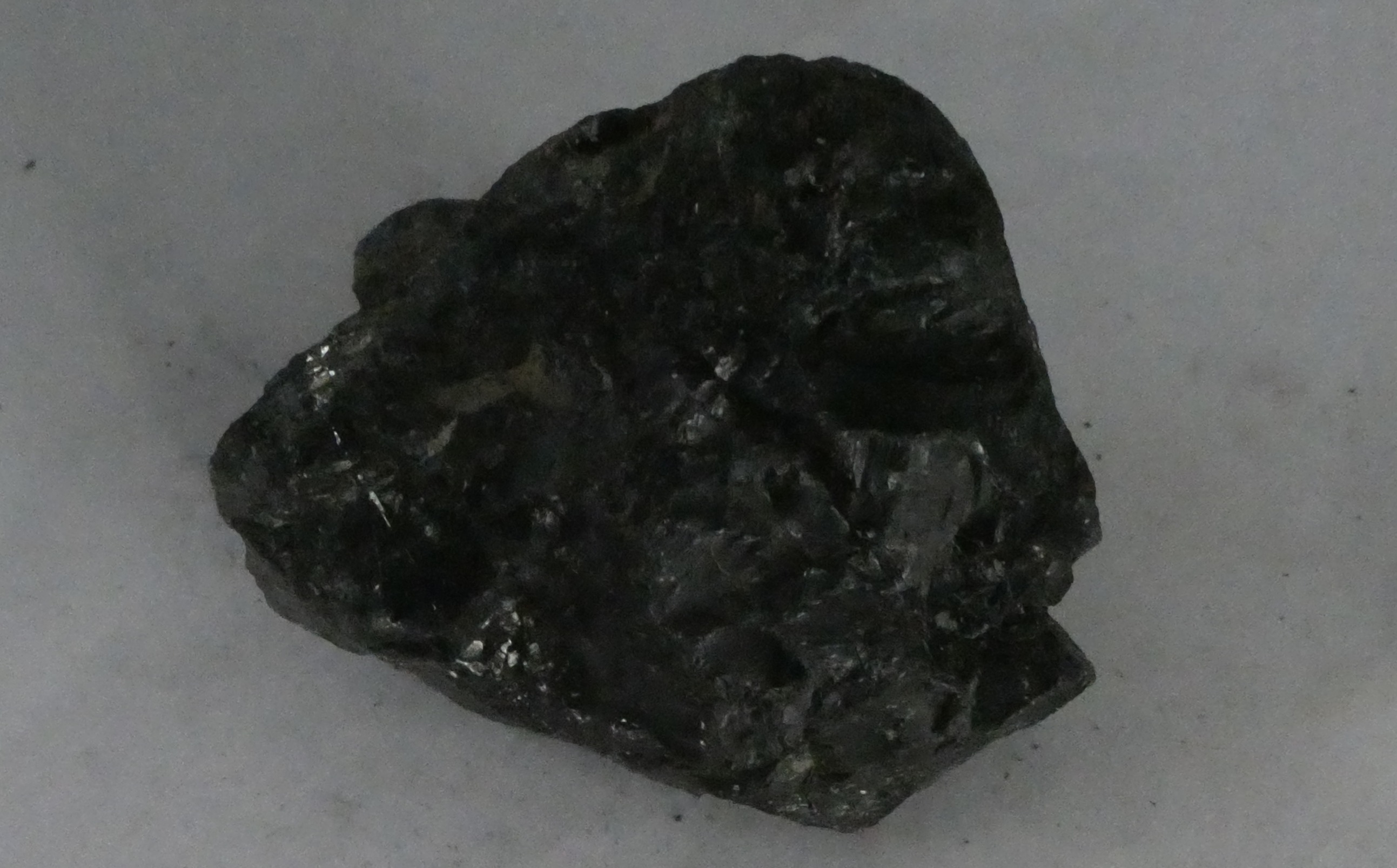

M0134 Galena	CSIRO	Galena (57.4%), Sphalerite	57.4	M0134 Galena Image of Galena and Sphalerite in specimen 'M0134 Galena' [CSIRO]. (C) 2025 CSIRO Mineral Resources. All rights reserved.	0	—

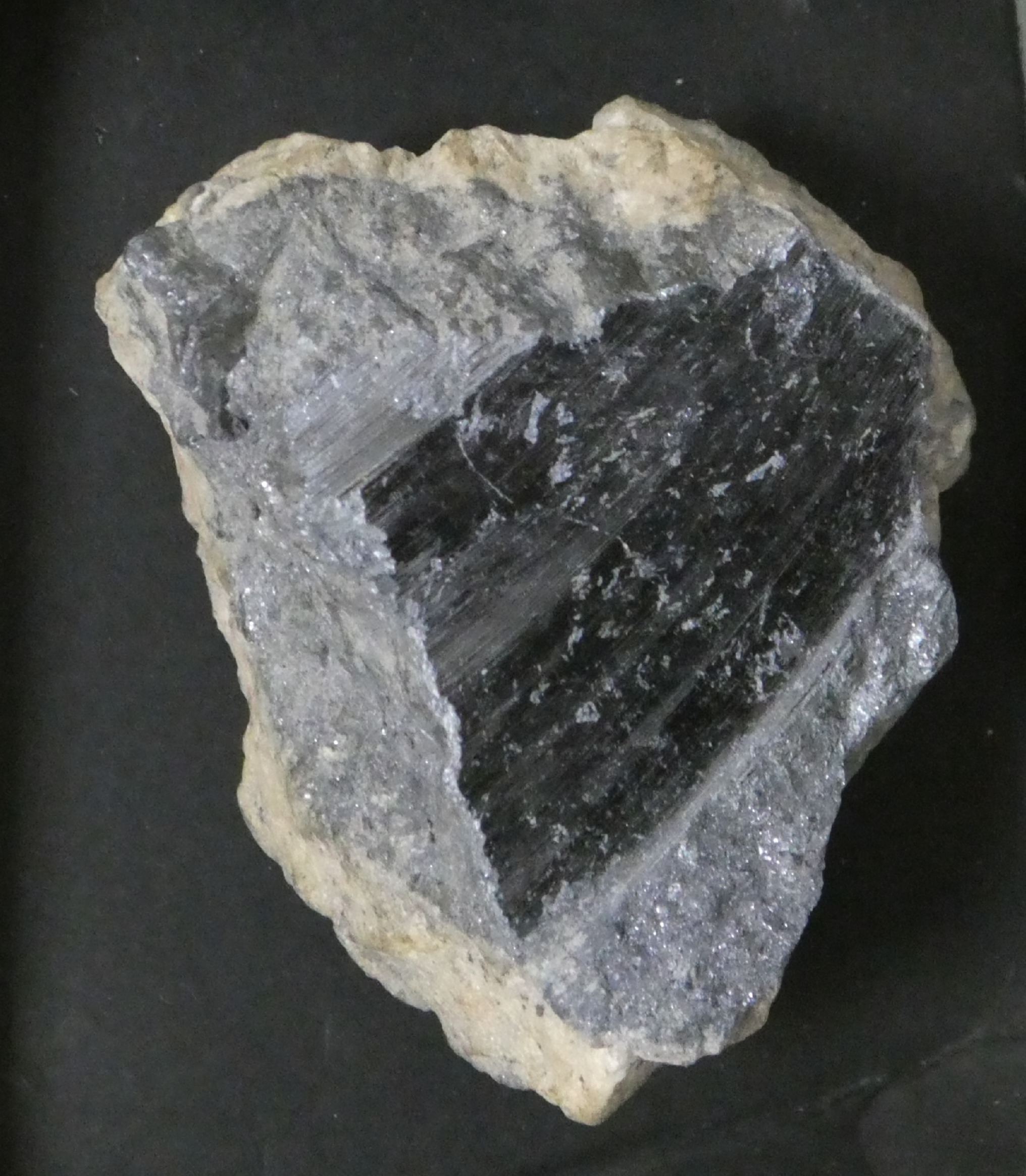

M0232 Boulangerite	CSIRO	Boulangerite, Galena (35.8%), Quartz	35.8	M0232 Boulangerite Image of Boulangerite, Galena and Quartz in specimen 'M0232 Boulangerite' [CSIRO]. (C) 2025 CSIRO Mineral Resources. All rights reserved.	0	—
M0264 Galena	CSIRO	Calcite, Galena (19.4%), Quartz, Rhodonite, Sphalerite	19.4	M0264 Galena Image of Rhodonite, Calcite, Galena, Quartz and Sphalerite in specimen 'M0264 Galena' [CSIRO]. (C) 2025 CSIRO Mineral Resources. All rights reserved.	0	—

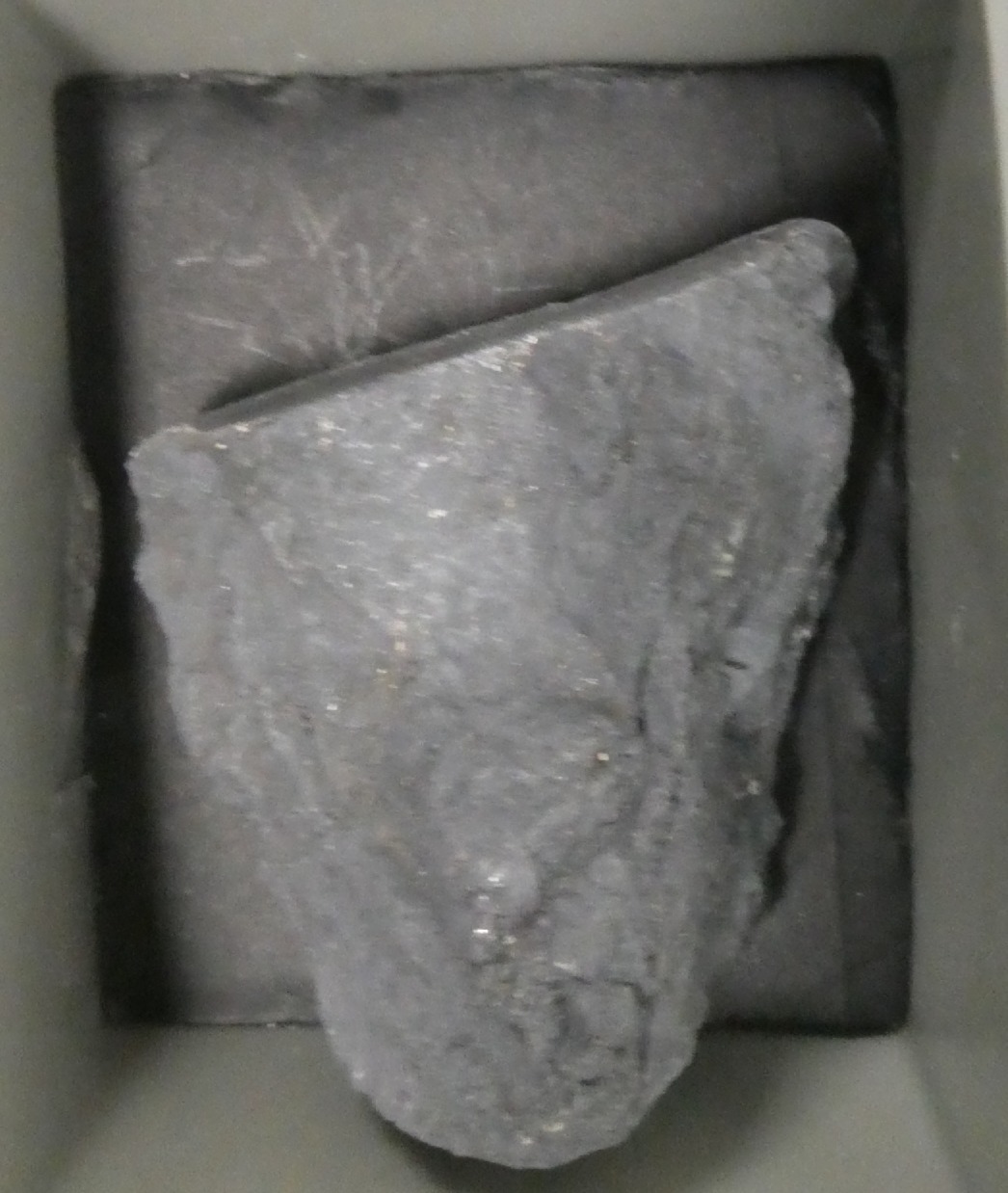

M0233 Tetrahedrite	CSIRO	Allargentum, Chalcopyrite, Galena (8.5%), Sphalerite, Tetrahedrite-(Cu)	8.5	M0233 Tetrahedrite Image of Tetrahedrite-(Cu), Allargentum, Chalcopyrite, Galena and Sphalerite in specimen 'M0233 Tetrahedrite' [CSIRO]. (C) 2025 CSIRO Mineral Resources. All rights reserved.	0	—

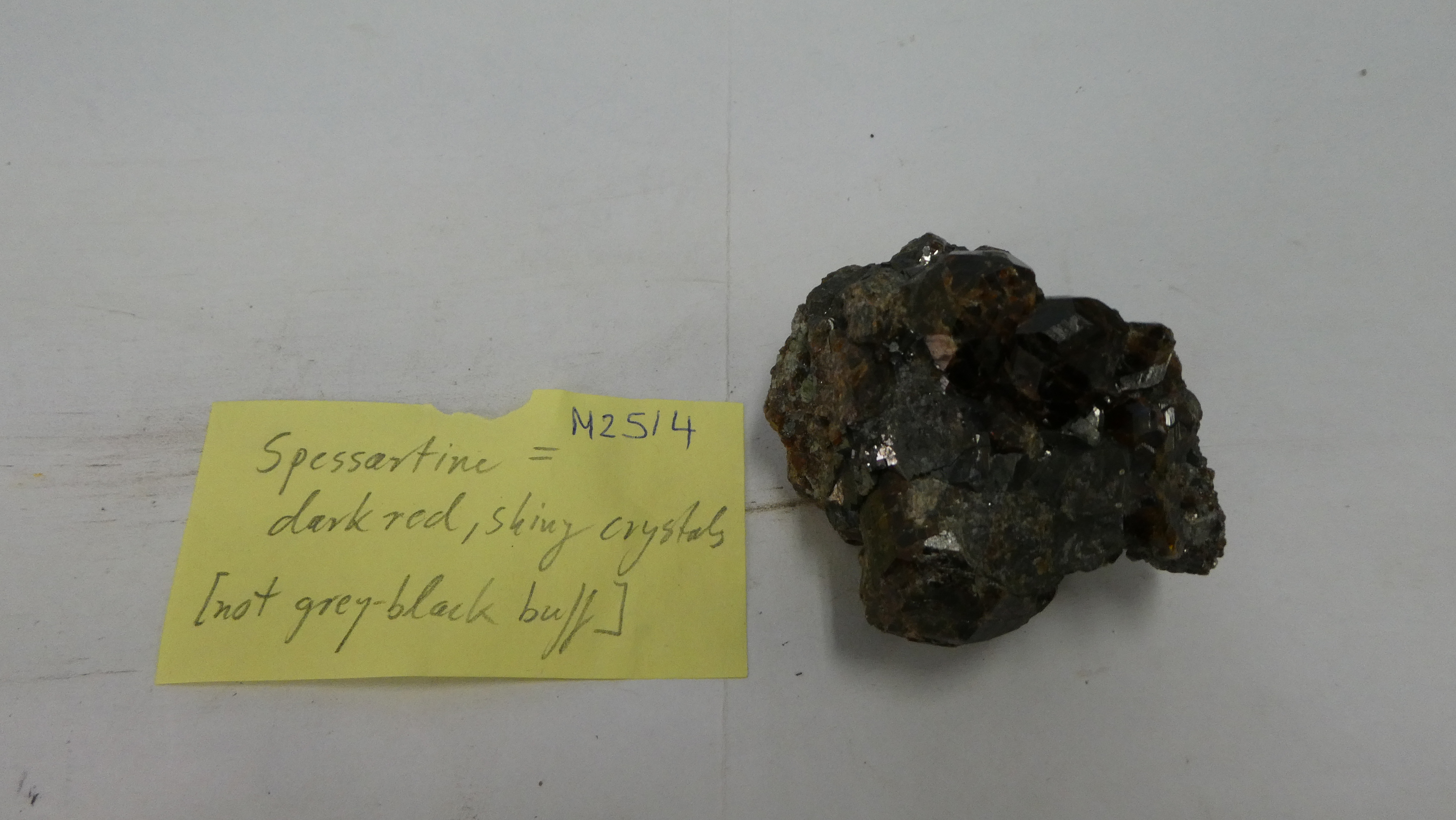

M2514 Spessartine	CSIRO	Galena (7.5%), Quartz, Spessartine	7.5	M2514 Spessartine Image of Spessartine, Galena and Quartz in specimen 'M2514 Spessartine' [CSIRO]. (C) 2026 CSIRO Mineral Resources. All rights reserved.	1	Reflectance
M0395 Bournonite	CSIRO	Anglesite, Bournonite, Calcite, Galena (4.7%), Pyrite, Quartz, Robinsonite, Siderite	4.7	M0395 Bournonite Image of Siderite, Anglesite, Bournonite, Calcite, Galena, Pyrite, Quartz and Robinsonite in specimen 'M0395 Bournonite' [CSIRO]. (C) 2026 CSIRO Mineral Resources. All rights reserved.	0	—

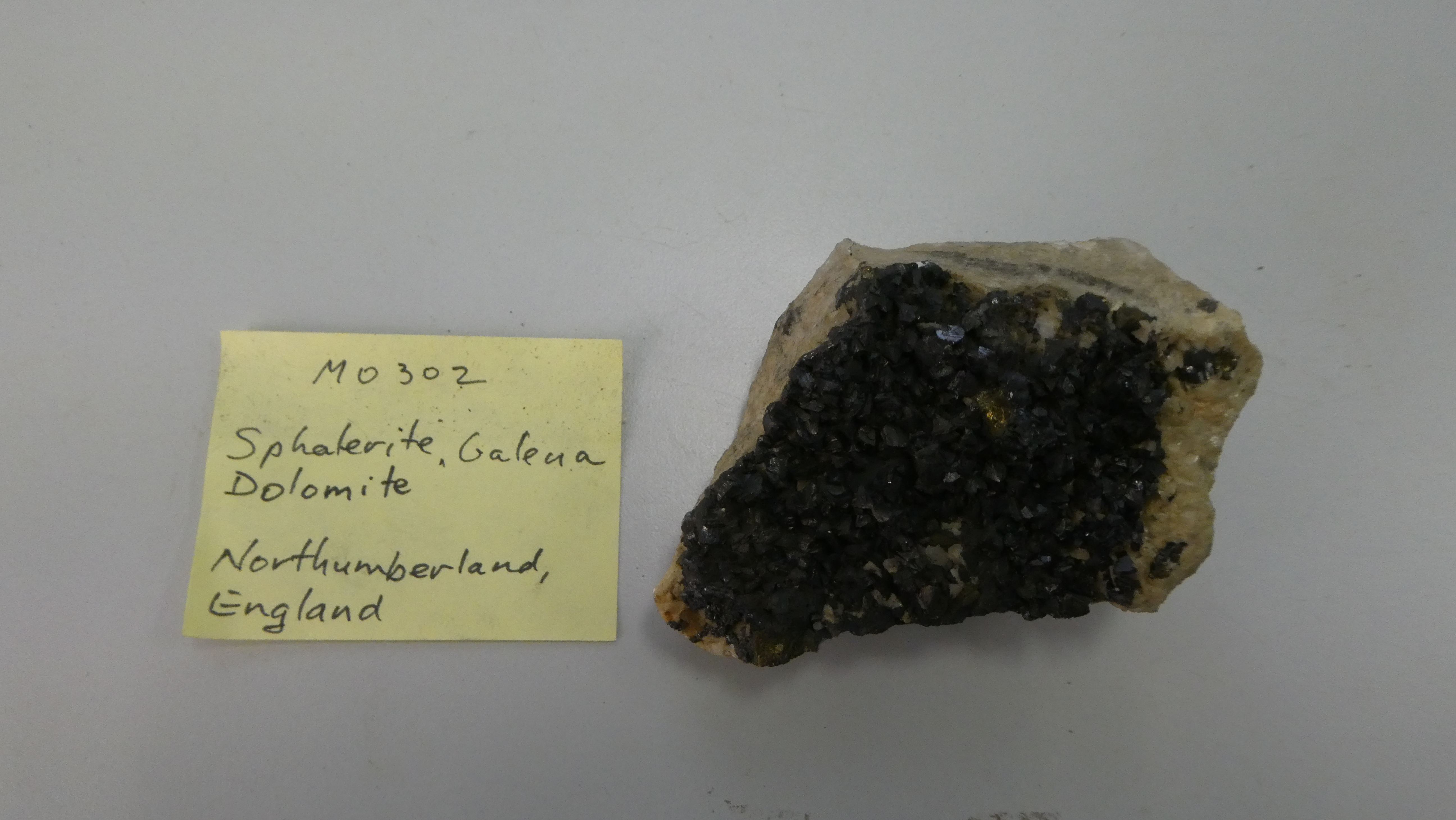

M0302 Sphalerite	CSIRO	Ankerite, Chalcopyrite, Dolomite, Galena (4.0%), Quartz, Sphalerite	4.0	M0302 Sphalerite Image of Ankerite, Chalcopyrite, Dolomite, Galena, Quartz and Sphalerite in specimen 'M0302 Sphalerite' [CSIRO]. (C) 2025 CSIRO Mineral Resources. All rights reserved.	0	—

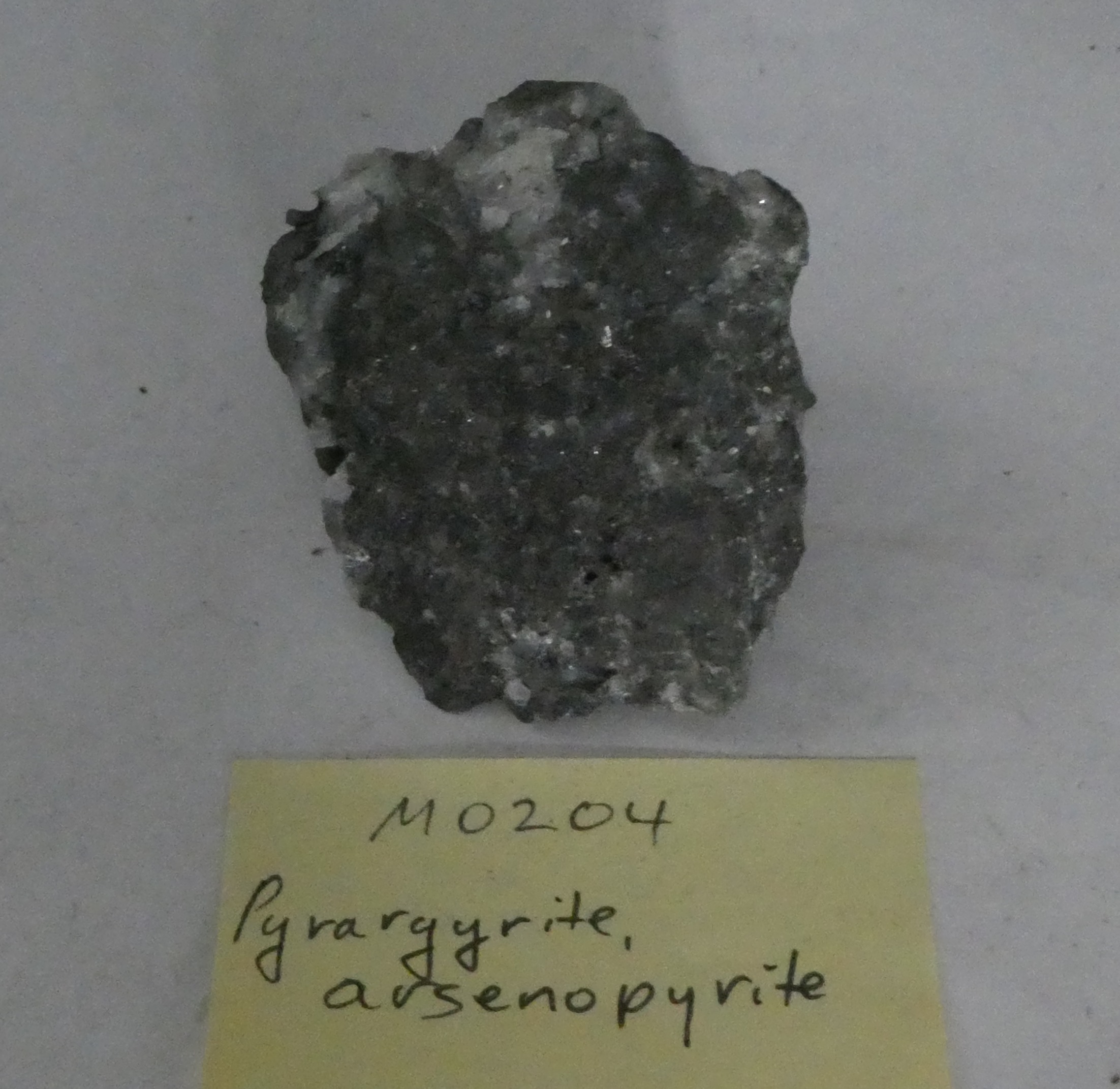

M0204 Arsenopyrite	CSIRO	Arsenopyrite, Galena (2.0%), Löllingite, Quartz, Sphalerite	2.0	M0204 Arsenopyrite Image of Quartz, Arsenopyrite, Galena, Löllingite and Sphalerite in specimen 'M0204 Arsenopyrite' [CSIRO]. (C) 2025 CSIRO Mineral Resources. All rights reserved.	0	—

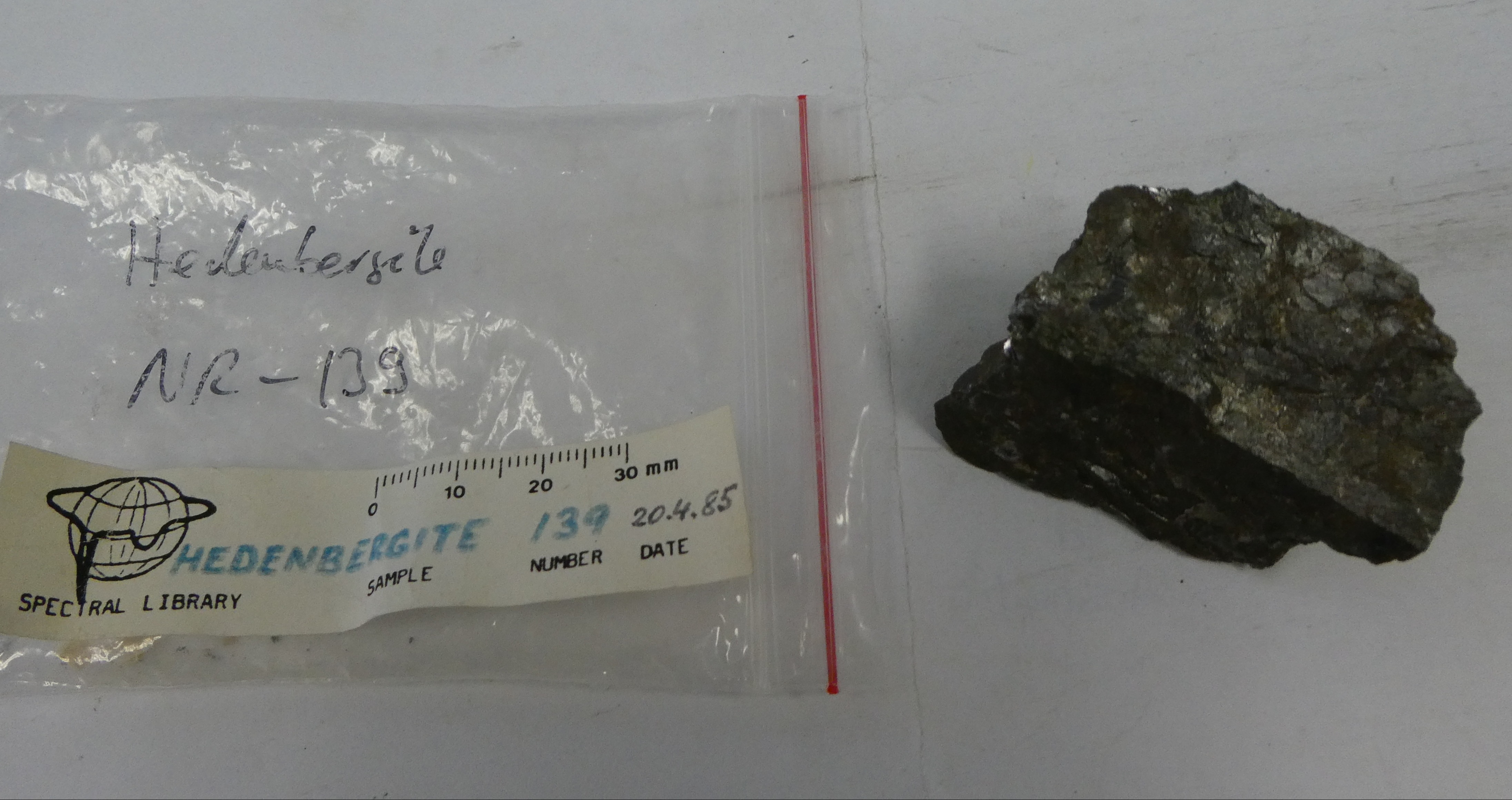

NR139 Hedenbergite	CSIRO	Galena (2.0%), Hedenbergite, Quartz, Skiagite	2.0	NR139 Hedenbergite Image of Hedenbergite, Galena, Quartz and Skiagite in specimen 'NR139 Hedenbergite' [CSIRO]. (C) 2026 CSIRO Mineral Resources. All rights reserved.	0	—

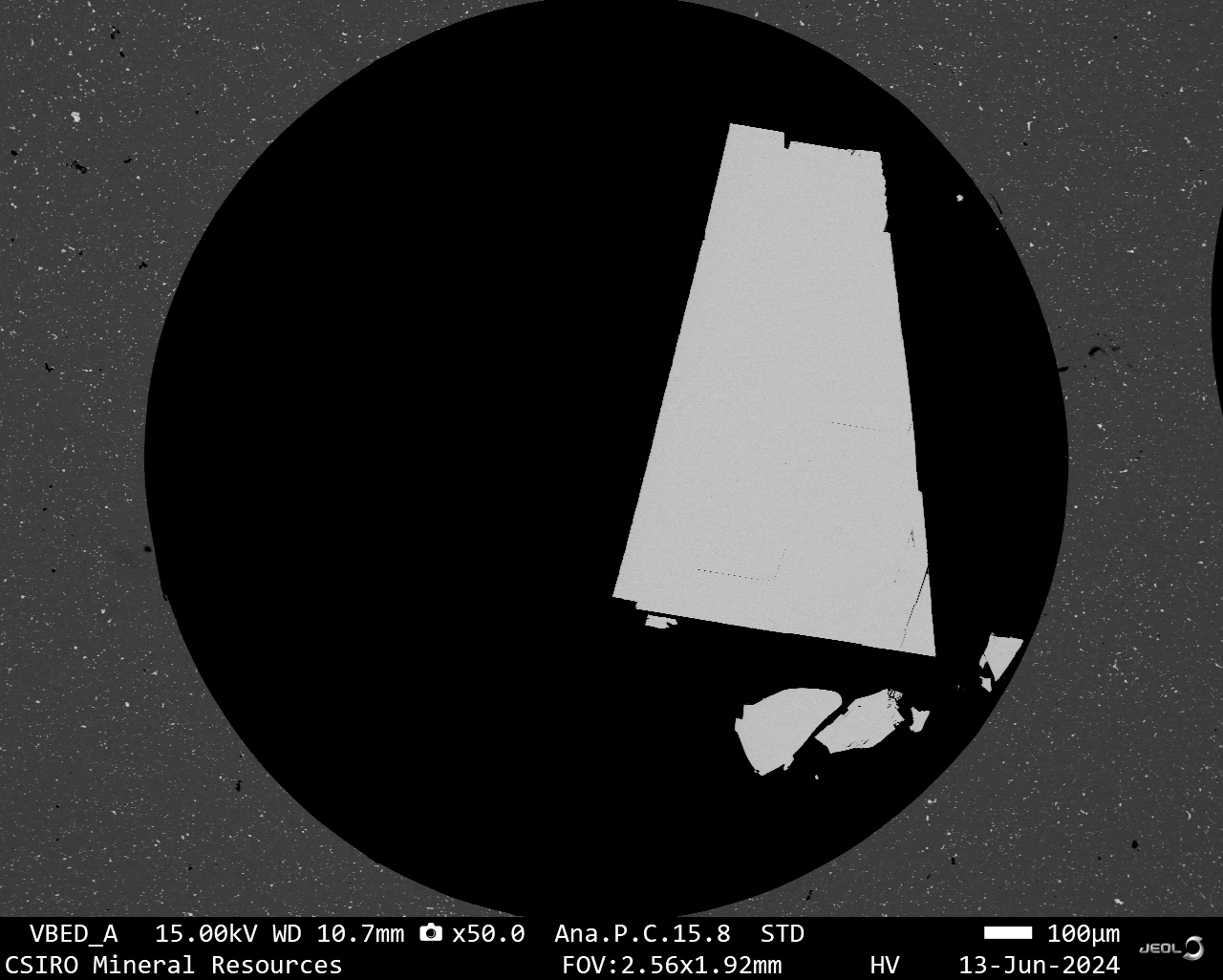

PbS Hyper2-11	CSIRO	Galena	—	PbS Hyper2-11 BSE image of Galena [PbS] in 'PbS Hyper2-11' standard (CSIRO). Instrument: JEOL JSM-IT800. (C) 2024 CSIRO Mineral Resources. All Rights reserved.	1	SXES
S-20-003 ZnS	CSIRO	Baryte, Galena, Magnesium oxide, Quartz, Zinc oxide, Zinc sulphide	—	S-20-003 ZnS Clustered phase map of Sample 12-5 ZnS HR, showing CL overlay for ZnS (C) 2021 CSIRO Mineral Resources	2	CL
